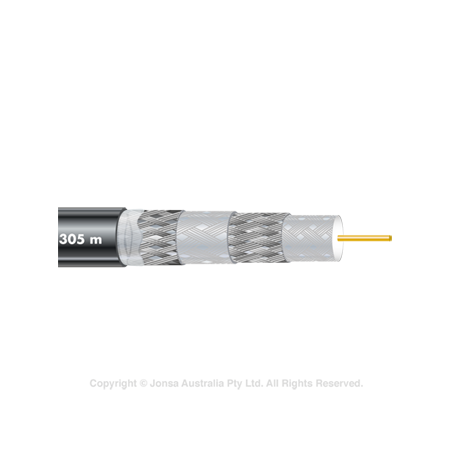

Coaxial RG11 Quad Cable | 305M Flooded | Copper Clad Steel | Jonsa
Coaxial RG11 quad cable with copper clad steel conductor and foamed HD polyethylene dielectric—ideal for television, internet, and CCTV installations. Built for reliable signal transmission, with durable materials for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CABLE, COAXIAL RG11 QUAD FLOODED 305M
Brand: Jonsa
SKU: CRG11BQF
Alternatively Known As: RG11 Quad Cable, Coaxial Cable, Flooded Coaxial Cable
Technical Specifications
- Centre Conductor Material: Copper Clad Steel Wire
- Centre Conductor Diameter: 1.63 ± 1% mm (AWG14)
- Dielectric Material: Foamed HD Polyethylene
- Dielectric Diameter: 7.11 mm
- Laminated Shielding Tape Material: Laminated Aluminium Foil
- Laminated Shielding Tape Thickness: 60 Microns
- Core Diameter: 7.32 ± 0.15 mm
- Inner Braid Material: Aluminium Alloy Wires
- Inner Braid Minimum Braiding Coverage: 60%
- Outer Braid Material: Aluminium Alloy Wires
- Outer Braid Minimum Braiding Coverage: 40%
- Sheath Material: PE
- Sheath Thickness: 0.94 mm
- Attenuation @ 20 °C: 5 MHz - 1.25 dB/100 m, 55 MHz - 3.15 dB/100 m, 211 MHz - 6.23 dB/100 m, 250 MHz - 6.72 dB/100 m, 270 MHz - 7 dB/100 m, 300 MHz - 7.38 dB/100 m, 330 MHz - 7.71 dB/100 m, 350 MHz - 7.94 dB/100 m, 400 MHz - 8.53 dB/100 m, 450 MHz - 9.02 dB/100 m, 500 MHz - 9.51 dB/100 m, 550 MHz - 9.97 dB/100 m, 600 MHz - 10.43 dB/100 m, 750 MHz - 11.97 dB/100 m, 870 MHz - 13.31 dB/100 m, 1000 MHz - 14.27 dB/100 m, 1300 MHz - 16 dB/100 m, 1550 MHz - 17.42 dB/100 m, 1770 MHz - 19.58 dB/100 m, 2050 MHz - 21.61 dB/100 m, 2400 MHz - 23.10 dB/100 m
- Dimensions (H x L x W): n/a mm x 305000mm x n/a mm
- Weight: 1.5 kg
Key Features
- Copper Clad Steel Wire Centre Conductor
- Foamed HD Polyethylene Dielectric
- Laminated Aluminium Foil Shielding
- Aluminium Alloy Wires for Inner and Outer Braid
- Overall Diameter of 10.34 ± 0.25 mm
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Television and internet signal transmission
- CCTV installations
- General wiring for communication systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Jonsa Coaxial RG11 Quad Flooded Cable 305M is available now for immediate purchase. Ideal for various communication and signal transmission applications.
