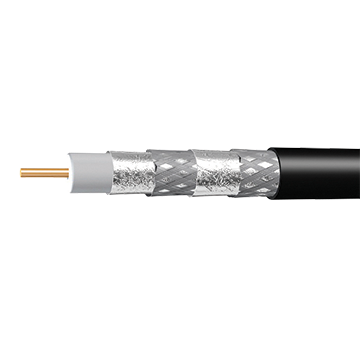

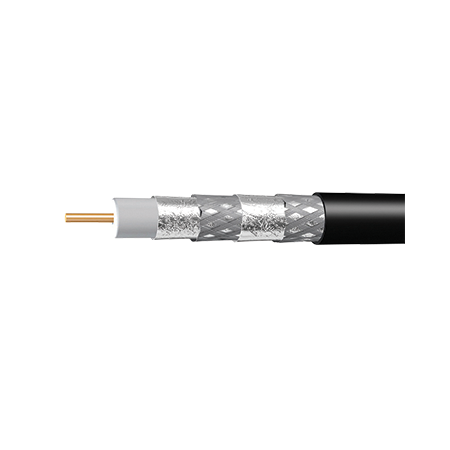

RG11 Coaxial Cable Reel 305m | Low Smoke Zero Halogen | Quad-shield by Matchmaster
RG11 coaxial cable reel with 305m length and quad-shielding—ideal for broadcasting, telecommunications, and security systems. Built for enhanced safety with low smoke zero halogen construction, ensuring superior signal quality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Inner conductor: Copper clad steel Ф1.63±0.02mm
- Insulation: Physically foamed PE Ф7.11±0.15mm
- Shielding: Four layers - bonded Al/PET/Al tape, aluminum wire braid 34AWG, non-bonded Al/PET/Al tape, aluminum wire braid 34AWG
- Jacket: Flame retardant PE Ф10.34±0.25mm
- Impedance: 75±2.5Ω
- Nominal capacitance: 54pF/m
- Propagation velocity: 82%
- DC breakdown voltage: 3.0kV
- Insulation resistance: ≥10000 MΩ•km
- Screening attenuation: ≥110dB@5~3000MHz
- Frequency attenuation ranges from 1.25 dB/100m at 5MHz to 25.86 dB/100m at 3000MHz
- Structure return loss: ≥20dB from 5-3000MHz
- Operating temperature range: -30 to +85°C
- Dimensions (H x L x W): 103mm x 305000mm x 103mm
- Weight: 10 kg
Key Features
- Foxtel approved (F31191)
- RG11 metre marked low smoke zero halogen cable with quad shielding
- Constructed with LSZH materials for fire safety and environmental friendliness
- Four shielding layers for maximum signal protection and stability
- 305 metre reel length
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure optimal performance and compliance with safety standards.
Applications
- Free-to-air and pay TV systems
- In-building network backbone and lateral cable runs
- High length cable runs requiring low loss and high signal stability
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Low smoke zero halogen (LSZH) jacket reduces toxic gas emissions in case of fire
- Complies with environmental safety standards for reduced environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster 305m RG11 Low Smoke Zero Halogen Quad-shield Coaxial Cable Reel is available now for immediate purchase. Ideal for high-performance TV and network installations requiring safe and reliable cable solutions.
