RG59 Quad-shield Coaxial Cable | 305m Length | 75 Ohm | Copper Conductor by Matchmaster
RG59 quad-shield coaxial cable with 305 meters length and 75 Ohm impedance—ideal for CCTV installations and audio/video distribution. Built for enhanced signal protection, with flexible copper conductor for versatile use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

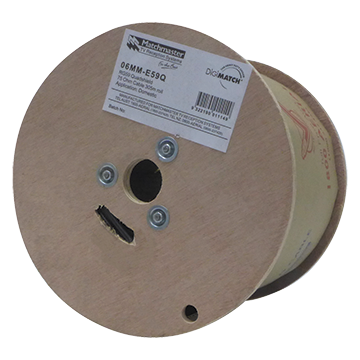

Product Name/Title: 305m RG59 Quad-shield Coaxial Cable Reel
Brand: Matchmaster
SKU: 06MM-E59Q
Alternatively Known As: RG59 Quad Shield Cable, Quad-shield Coaxial Cable, RG59 Coax Cable Reel, 75 Ohm Quad Shield Cable
Technical Specifications
- Inner Conductor: Copper Clad Steel Wire, Diameter 0.81±0.01 mm
- Insulation: Physically Foamed PE, Diameter 3.66±0.15 mm

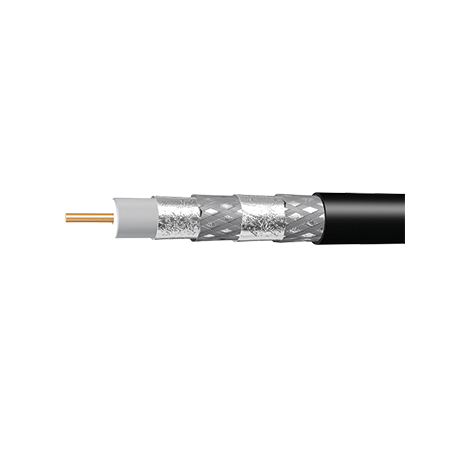

- Outer Conductor: Four shielding layers including bonded Al/PET/Al Tape and Al-Mg Alloy Wire Braid
- Jacket Material: PVC, Diameter 6.73±0.20 mm
- Bending Radius: Single 28 mm, Typical 56 mm
- Pulling Strength: 180 N
- Adhesion Force: >20 N
- Impedance: 75±3 Ω
- Capacitance: 54 pF/m
- Propagation Velocity: 85%
- DC Breakdown Voltage: 5.0 kV
- Insulation Resistance: >5×10^4 MΩ•km
- Screening Attenuation: >105 dB @ 5~1000 MHz
- Attenuation at 1000 MHz: 26.64 dB/100m
- Return Loss: ≥20 dB @ 5-1000 MHz
- Dimensions (H x L x W): 150mm x 6730mm x 6730mm
- Weight: 7 kg
Key Features
- RG59 metre marked cable with quad shielding
- Sold in a 305 metre reel
- Suitable for digital TV
- Copper-clad steel centre conductor for durability
- Four shielding layers for maximum signal protection and stability
- 1GHz rated low loss coaxial cable
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper handling and optimal signal performance.
Applications
- Free-to-air TV systems
- Replacing cables in existing conduits or cavities
- Short linking cables in headends or rack patching
- Digital TV installations requiring flexible coaxial cable
Standards & Compliance
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug) for electrical connection safety
Environmental Benefits
- Compliant with 2011/65/EU RoHS directive, reducing hazardous substances
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster 305m RG59 Quad-shield Coaxial Cable Reel is available now for immediate purchase. Ideal for digital TV and free-to-air system installations requiring high signal integrity.
