Commercial Wall Mounted Fan 350mm | IP55 | Speed Control | Robust Design by Fantech
Commercial wall mounted fan with 350mm dimensions and IP55 rating—ideal for warehouses and industrial spaces. Built for effective air circulation, with robust design and speed control options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

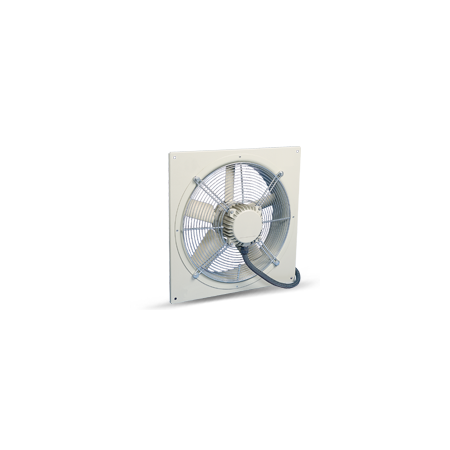

Product Name/Title: Compact 2000 commercial wall mounted fan 350mm 1ph
Brand: Fantech
SKU: CPE0354F
Alternatively Known As: Axial Fan, Wall Mounted Fan, Commercial Fan
Performance Curve
Technical Specifications
- Electricity supply: 230V single or 415V three-phase, 50Hz
- Motor type: Squirrel cage induction motor
- Operating temperature range: -20°C to 70°C
- IP Rating: IP55
- Bearings: Sealed for life, ball
- Air flow tests to AS ISO5801:1997
- Noise tests to BS848:Part 2, 1985
- Dimensions (H x L x W): 350mm x 350mm x 350mm
- Weight: 10 kg
Key Features
- Robust high-quality construction with a square plate design.
- Inlet guard included as standard for models 025 to 063.
- Capable of operating in temperatures from -20°C to 70°C.
- Speed control options available for energy management.
- IP55 rating for dust and water resistance.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Commercial: Warehouses, factories, and industrial spaces
- General: Any location requiring effective air circulation
Standards & Compliance
- Complies with AS ISO5801 for air flow testing and BS848 for noise testing.
Environmental Benefits
- Energy-efficient design helps reduce power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Fantech Compact 2000 Commercial Wall Mounted Fan 350mm 1ph is available now for immediate purchase. Ideal for commercial and industrial applications.
