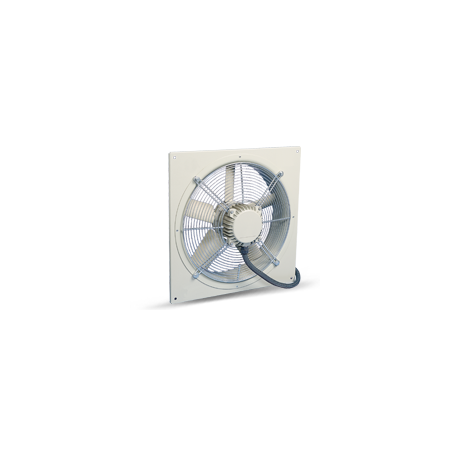

Commercial Wall Mounted Fan 400mm | 3-Phase | IP55 Rated | Galvanised Steel by Fantech
Commercial wall mounted fan with 400mm dimensions and 3-phase power—ideal for warehouses and factories. Built for durability, with IP55 dust and water resistance and robust galvanised steel construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Performance Curve
Technical Specifications
- Electricity supply: 230V single or 415V three-phase, 50Hz
- Motor type: Squirrel cage induction motor
- Bearings: Sealed for life, ball
- Maximum ambient temperature when speed controlled: 40°C
- Air flow tests to AS ISO5801:1997
- Noise tests to BS848:Part 2, 1985
- Dimensions (H x L x W): 400mm x 400mm x 400mm
- Weight: 15 kg
Key Features
- Robust high-quality construction with a galvanised steel square plate.
- Inlet guard included as standard for models 025 to 063.
- 2-speed star/delta motors standard for models 040 to 063.
- Wide operating temperature range from -20°C to 70°C.
- IP55 rating for dust and water resistance.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance and safety.
Applications
- Commercial: Warehouses, factories, and large retail spaces
- Industrial: Manufacturing facilities and workshops
Standards & Compliance
- Complies with AS ISO5801 for air flow testing and BS848 for noise testing.
Environmental Benefits
- Speed control options help manage energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Fantech Compact 2000 Commercial Wall Mounted Fan 400mm 3ph is available now for immediate purchase. Ideal for commercial and industrial applications.
