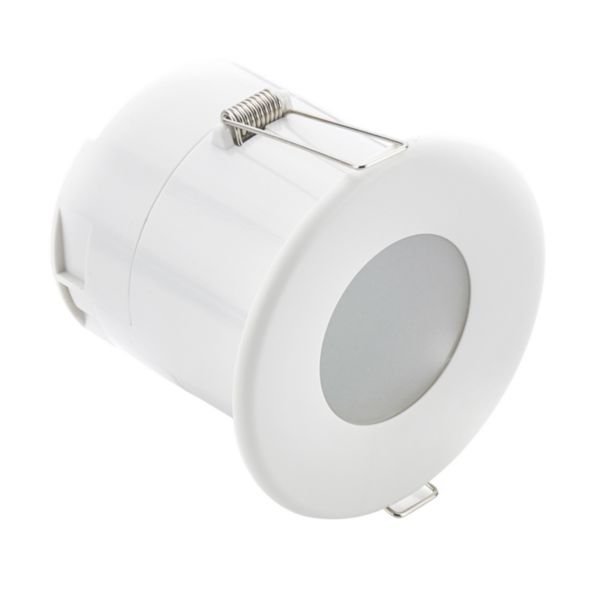

Compact IP40 Flush Mounted Ceiling Photocell Switch | 1-10V Dimming | Adjustable Light Levels | by CP Electronics
The Compact IP40 Flush Mounted Ceiling Photocell Switch is designed for efficient lighting control, featuring 1-10V analogue dimming and adjustable preset light levels. Ideal for commercial and industrial applications, it ensures optimal energy efficiency by automatically adjusting lighting based on natural light availability, making it perfect for offices and public buildings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Compact IP40 Flush Mounted Ceiling Photocell Switch | 1-10V Dimming | Adjustable Light Levels | by CP Electronics
Brand: CP Electronics
SKU: ALC-AD
Alternatively Known As: Flush Mounted Photocell Switch, Daylight Harvesting Photocell, 1-10V Dimming Photocell, Ceiling Photocell Sensor
Technical Specifications
- Type of sensor: Built-in light sensor
- Contacts: 1 make contact (NO)
- Engaging brightness: 0-250 lx
- Switching-off brightness: 0-250 lx
- Switch-off delay: 99 seconds
- Switching-on delay: 0 seconds
- Max. switching power: 2300 W
- Suitable for C-load: No
- Mounting method: Flush-mounted
- Material: Thermoplastic plastic, halogen free
- Surface finishing: Matt, untreated
- Colour: White (RAL 9002)
- Nominal voltage: 220 V AC
- Max. switching current (resistive load): 10 A
- Operating temperature: -10 to 35 °C
- Degree of protection: IP40
- Connection type: Push-in clamp
- Terminals capacity: 2.5 mm²
- Compatible with Apple HomeKit, Google Assistant, Amazon Alexa, IFTTT: No
- Dimensions (H x L x W): 65mm x 61mm x 76mm
- Weight: 0.1 kg
Key Features
- Flush or surface mounted design
- Adjustable preset light levels for precise control
- Adjustable time delay to prevent nuisance switching
- Maintained illuminance with daylight linking or harvesting
- Analogue dimming controls up to 10 drivers/ballasts
- Switching/dimming with lux level lensing
- Optional manual override via switch input
- Suitable for all lighting types
- User handset available for on/off, lux levels, and preset scenes
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Commercial and industrial lighting control
- Daylight harvesting for energy efficiency
- Automatic dimming for luminaires with 1-10V dimming ballasts
- Suitable for use in offices, retail, and public buildings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically adjusting lighting based on natural light availability
- Supports sustainable building practices through daylight harvesting
- Helps lower carbon footprint by minimizing unnecessary artificial lighting
Warranty Information
Standard manufacturer warranty applies; typically 2 years against defects.
Available Now
The CP Electronics Compact IP40 Flush Mounted Ceiling Photocell Switch is available for immediate purchase, ideal for commercial and industrial lighting control applications.
