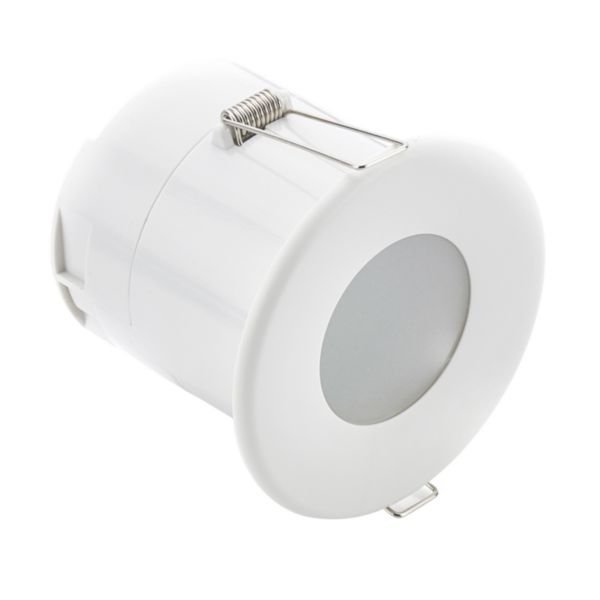

Compact IP40 Flush Mounted Ceiling Photocell Switch | Volt Free Contacts | Adjustable Time Delay | White Finish | @Each of 1 | by CP Electronics
The Compact IP40 Flush Mounted Ceiling Photocell Switch is designed to automatically control lighting based on ambient light levels, making it ideal for commercial and industrial applications. With features like volt-free contacts and an adjustable time delay, it ensures energy efficiency and convenience. This switch is perfect for daylight harvesting systems and automated lighting control, enhancing sustainability in your building.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Compact IP40 Flush Mounted Ceiling Photocell Switch | Volt Free Contacts | Adjustable Time Delay | White Finish | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: ALC-PRM-VFC
Alternatively Known As: Ceiling Photocell Switch, Daylight Sensor Switch, Flush Mounted Photocell, Light Level Sensor
Technical Specifications
- Type of sensor: Built-in light sensor
- Contacts: 1 make contact (NO)
- Engaging brightness: 0-250 lux
- Switching-off brightness: 0-250 lux
- Switch-off delay: 99 seconds
- Switching-on delay: 0 seconds
- Max switching power: 2300 W
- Suitable for C-load: No
- Mounting method: Flush-mounted
- Material: Thermoplastic, halogen free
- Surface finishing: Matt, untreated
- Colour: White (RAL 9002)
- Nominal voltage: 220 V AC
- Max switching current (resistive load): 10 A
- Operating temperature: -10 to 35 °C
- Degree of protection: IP40
- Connection type: Push-in clamp
- Terminals capacity: 2.5 mm²
- Dimensions (H x L x W): 65mm x 61mm x 76mm
- Weight: 0.1 kg
Key Features
- Turns lighting on when ambient light falls below a preset level
- Turns lighting off when light level rises above a preset level
- Adjustable time delay to prevent nuisance switching
- Flush or surface ceiling mounting
- Programmable via dedicated programming handset
- Absence detection functionality
- Volt free switching contacts
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Lighting control in commercial and industrial buildings
- Daylight harvesting systems to optimize energy use
- Automated lighting systems for energy efficiency
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting based on ambient light levels
- Supports sustainable building practices through efficient daylight harvesting
Warranty Information
Standard manufacturer warranty applies, typically 2 years against defects.
Available Now
The CP Electronics Compact IP40 Flush Mounted Ceiling Photocell Switch is available for immediate purchase, ideal for commercial and industrial lighting control applications.
