Trade Discount 25%

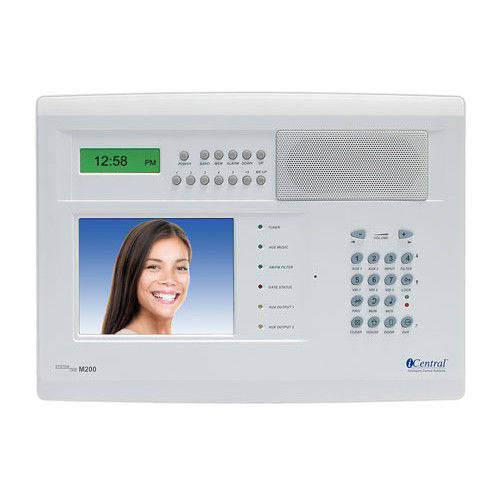

Compact Master Intercom 5.6 Inch LCD DAB+ FM Radio White iCentral
iCentral compact master intercom features a 5.6 Inch TFT LCD, DAB+ and FM radio and a white finish. Ideal for System One music and video intercoms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: iCentral M200 Compact Master, System One Video Intercom Master Station, iCentral DAB+ FM Intercom Master
Technical Specifications
- Model: M200 Compact Master Station
- Display: 5.6-inch colour TFT LCD
- Radio: DAB+ and FM with station presets
- System compatibility: iCentral System One door and room stations
- Video inputs: Three inputs for door stations, CCTV cameras or TV sources
- Power supply: Regulated 13.8 V DC required
- Finish: White
- Audio input: Auxiliary music input for compatible external sources
- Video output: Output available for an additional monitor
- Installation: Flush-mounted master station with recessed wall-box section
- Dimensions (H x L x W): 231mm x 62mm x 319mm
- Weight: 2 kg
Key Features
- 5.6-inch colour TFT LCD with graphical user interface
- Integrated DAB+ and FM radio
- Compatible with iCentral System One music and video intercom systems
- Supports video monitoring from door stations, CCTV cameras or TV inputs
- Programmable system controls and automation outputs
- Auxiliary audio input for external music sources
- White finish suitable for residential intercom installations
Professional Installation Requirements
- Installation should be carried out by a suitably qualified intercom or electrical installer. The master station requires recessed wall-box installation, system cabling and a regulated 13.8 V DC power supply; final connection to mains-powered supply equipment should comply with applicable electrical requirements.
Applications
- System One residential music intercoms
- Video door-entry and visitor communication systems
- Multi-room audio and intercom installations
- Home CCTV or auxiliary video monitoring
- Residential renovation projects replacing compatible iCentral or Valet master stations
Standards & Compliance
- AS/NZS 62368.1:2022 – relevant safety standard for audio/video and information and communication technology equipment
Environmental Benefits
- Combines intercom, video monitoring and radio functions in one master station, reducing the need for separate equipment
- Durable fixed-installation design can support a long service life and reduce replacement waste
- Repair or replacement of individual system components may reduce whole-system disposal
Warranty Information
iCentral intercom systems are covered by a 36-month warranty from the date of purchase under the published iCentral warranty terms. Return freight and some installation labour costs may be excluded; Australian Consumer Law rights apply.
Available Now
Available through iCentral and authorised Australian intercom, security and electrical distributors, subject to current product range and distributor stock.
