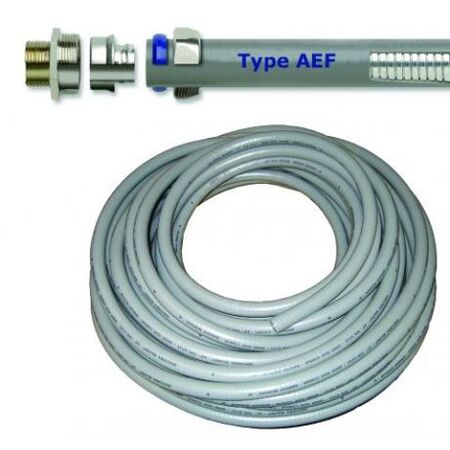

Conduit Anaconda AEF Liquidtight 103mm 7.62m Grey Wattmaster
Wattmaster 103mm flexible galvanised steel conduit (7.62m length) features liquid-tight sealing. Ideal for AS NZS 3000 compliant electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Core Material: Galvanised steel
- Cover Material: Grey thermoplastic PVC
- Diameter: 103mm
- Length: 7.62 meters
- IP Rating: IP67 with approved connectors
- Temperature Range: -20°C to +80°C (up to +90°C intermittent)
- No copper ground wire included
- Dimensions (H x L x W): 103mm x 7620mm x 103mm
- Weight: 3.5 kg
Key Features
- Extra flexible all-purpose wiring conduit with galvanised steel core
- Durable, sunlight resistant grey thermoplastic PVC cover
- Uses standard liquid-tight fittings for easy installation
- Smooth appearing cover suitable for exposed applications
- Convenient markings in feet for easy measurement
- IP67 rating when installed with approved connectors
- Temperature range from -20°C to +80°C, up to +90°C intermittent
Professional Installation Requirements
- Installation should be performed by a qualified electrician using approved liquid-tight fittings to maintain IP67 rating and ensure safety.
Applications
- Electrical wiring protection in residential, commercial, and industrial installations
- Outdoor and indoor conduit applications requiring liquid-tight protection
- Use in environments exposed to sunlight and moisture
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Sunlight resistant cover extends product life in outdoor applications
Warranty Information
Warranty terms as per Wattmaster standard product warranty policy.
Available Now
The Wattmaster Flexible Metal Conduit Anaconda AEF Liquidtight 103mm Diameter 7.62m is available for immediate purchase, ideal for electrical wiring protection in both indoor and outdoor environments.
