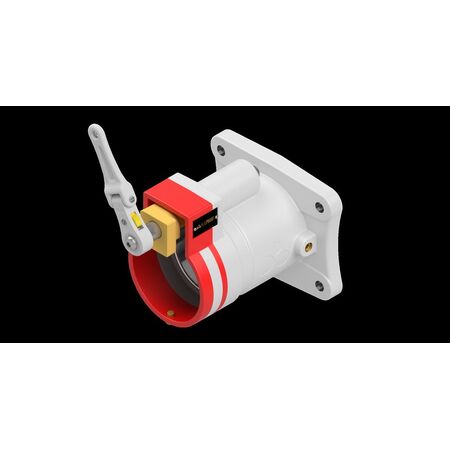

Contact Pin 6P 660V 3300V IP55 Stainless Steel Ausproof
Ausproof Contact Pin & Insulation Set 6P 660V to 3300V IP55 Rated Quick Release features stainless steel finish. Suited for AS NZS 2053 conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Ratings: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 150mm x 200mm x 150mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation should be performed by qualified professionals experienced with Ex-rated electrical equipment and hazardous area installations.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairability reduces waste by allowing on-site repairs without full replacement.
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL 16 \ 106 Contact Pin & Insul Set 6P 35 mm² is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and compliant electrical connections.
FAQ
Q: What voltage range is supported by this industrial connector?
A: This connector is rated for operation from 660V to 3300V.
Q: What applications is this connector suitable for?
A: It is designed for mining, tunnelling, commercial applications, and Group 1 hazardous environments.
Pair this connector with an industrial receptacle 425A 3300V quick release for compatible hazardous area power distribution systems.
An industrial plug assembly 150A 1100V quick release can support complete connection systems in demanding industrial installations.
For applications requiring a four-pin configuration, an industrial connector 660V 4P quick release offers a compatible connection option.
