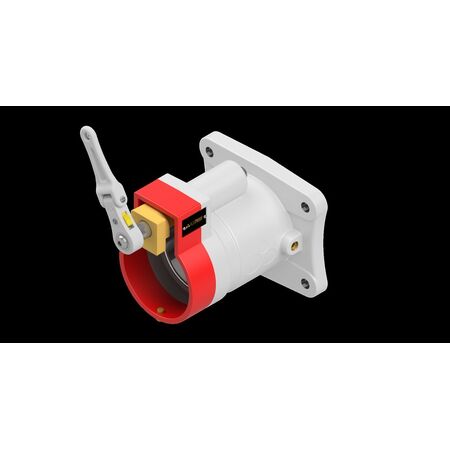

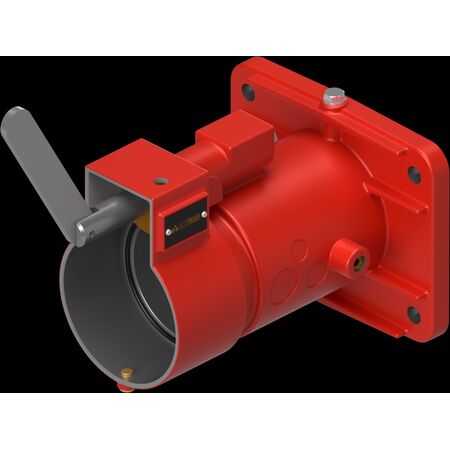

Contact Pin 6P 70mm² 660V 3300V IP55 Stainless Steel Ausproof
Ausproof Contact Pin & Insulation Set 6P 70mm² 660V to 3300V IP55 Rated Quick Release features stainless steel finish. Suited for AS NZS 2053 conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Ratings: 300A and 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation should be performed by qualified personnel trained in handling Ex-rated electrical equipment to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Easy flameproof repair reduces waste and downtime.
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL 12 \ 106 Contact Pin & Insul Set 6P 70 mm² is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
FAQ
Q: What voltage range does this industrial connector support?
A: This connector is rated for operation from 660V to 3300V.
Q: What environments is this connector designed for?
A: It is suitable for mining, tunnelling, commercial applications, and Group 1 hazardous environments.
Pair this connector with an industrial receptacle 425A 3300V quick release for compatible hazardous area power distribution systems.
An industrial plug assembly 150A 1100V quick release can be used where matching industrial connection components are required.
For applications using fewer poles, an industrial connector 660V 4P quick release provides a compatible connection alternative.
