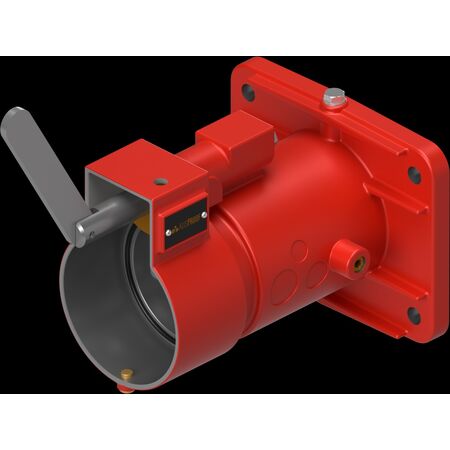

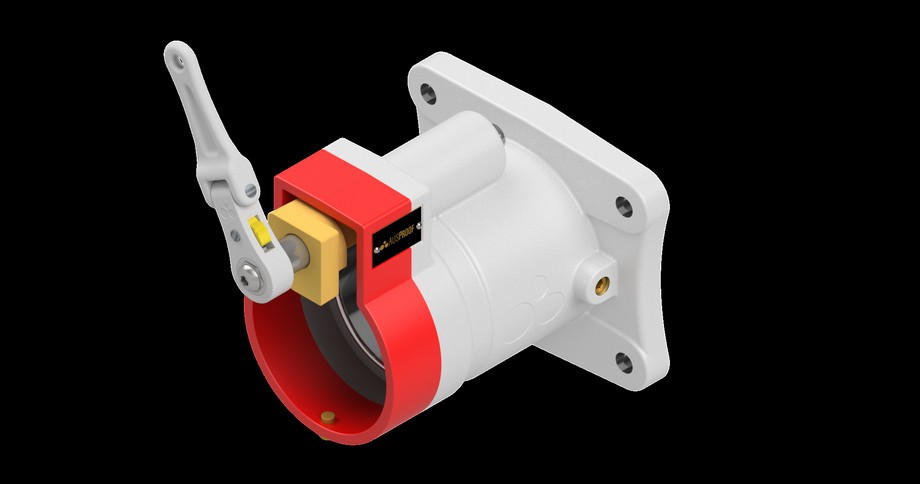

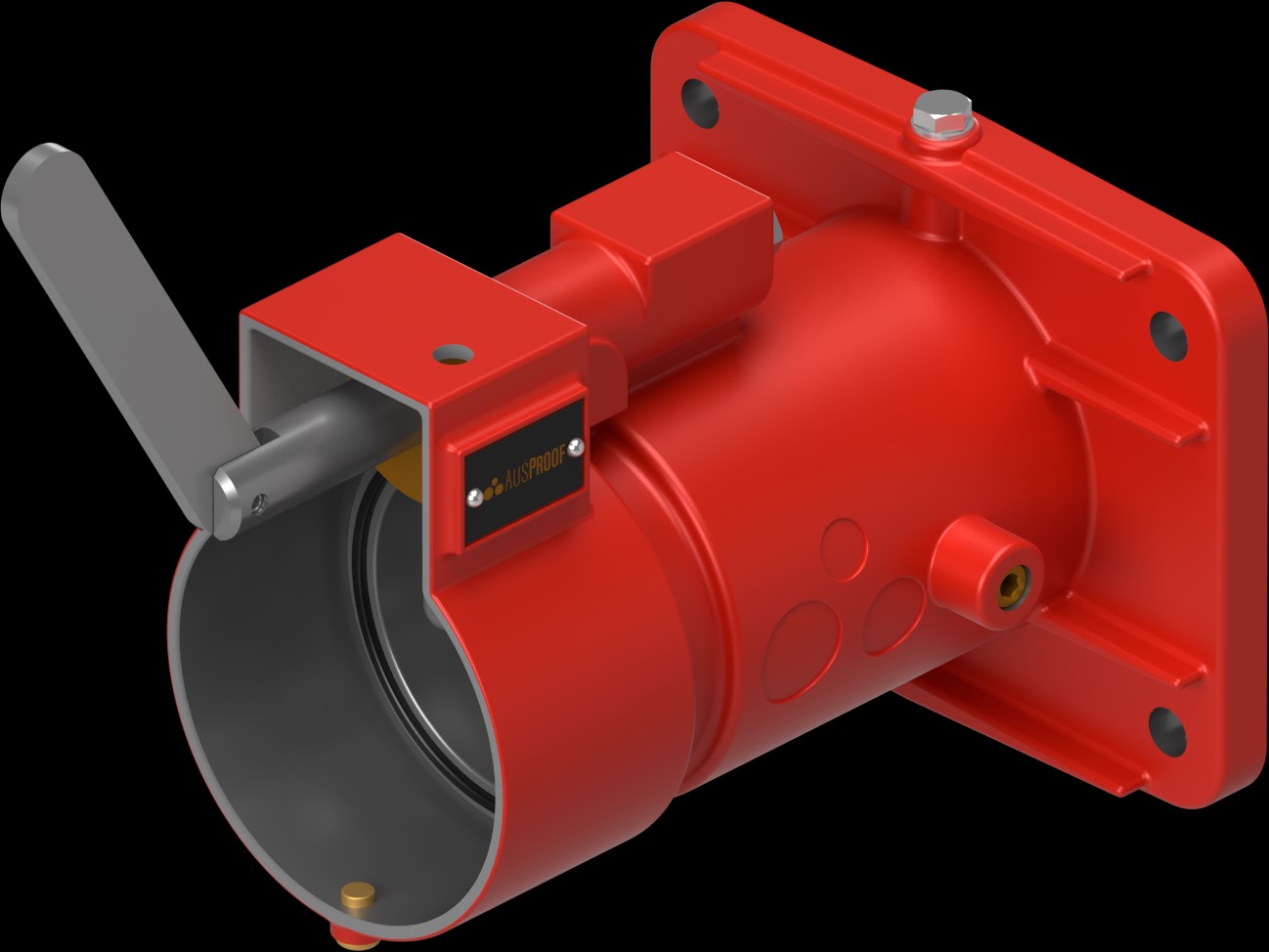

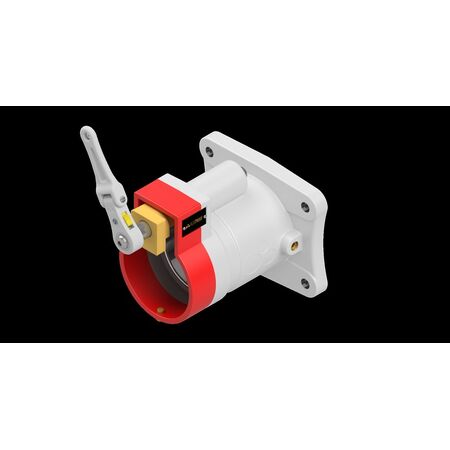

Contact Pin & Insulation Set 4P | 660V to 3300V | IP55 Rated | Quick Release by Ausproof

BRAND: Ausproof

SKU: RS2113

$270.90 List price: $336.40

+ −

30 Days Return Delivery Options

Contact pin and insulation set with a voltage range of 660V to 3300V and IP55 rating—ideal for mining and hazardous environments. Built for commercial applications, featuring quick release and durable stainless steel construction for reliable performance.

Description

Product Name/Title: PL 12 \ 106 Contact Pin & Insul Set 4P 150 mm^2

Brand: Ausproof

SKU: RS2113

Alternatively Known As: PL Range Contact Pin Set, Ex-rated Contact Pin Set, Flameproof Contact Pin Assembly, Mining Electrical Connector

Technical Specifications

Voltage Range: 660V to 3300V
Current Ratings: 300A and 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 150mm x 150mm x 150mm
Weight: 10.7 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation should be performed by qualified electricians trained in hazardous area electrical equipment to ensure compliance and safety.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 for electrical equipment in hazardous areas

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof repairability reduces waste by allowing on-site component replacement.

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 12 \ 106 Contact Pin & Insul Set 4P 150 mm² is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
