Trade Discount 20%

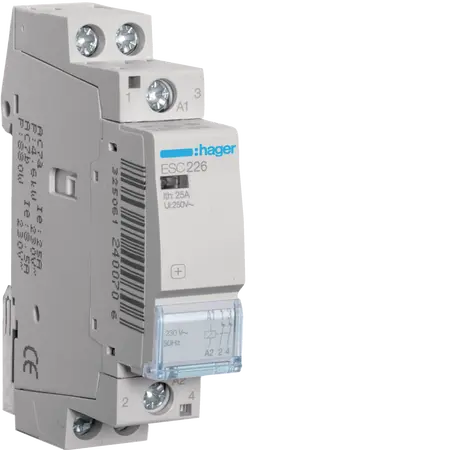

Contactor 25A 2NC 230VAC Ui 250V Grey Hager
Hager Contactor 25A 2NC 230VAC Ui 250V Grey. Ideal for motor control and industrial switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- 2NC type of contacts
- Rated current: 25A
- Cross-section flexible conductor: 1 - 6 mm²
- Cross-section rigid conductor: 1 - 10 mm²
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 250 V
- Command voltage AC: 230 - 230 V
- Operating temperature: -10 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Number of mechanical operations: 100000
- Electric endurance in number of cycles: 30000
- Total power loss under IN: 3 W
- Inrush power absorbed: 10.70 VA
- Nominal tightening torque: 1.20 - 1.20 Nm
- Dimensions (H x L x W): 83mm x 60mm x 17.85mm
- Weight: 0.3 kg
Key Features
- 25A rated current
- 2NC contacts
- 230V AC command voltage
- Compact design with 1 module width
Professional Installation Requirements
- Professional installation by a certified electrician is recommended to ensure safety and compliance.
Applications
- Residential lighting control
- Industrial motor control
- Automation systems
Standards & Compliance
- Meets all relevant AS/NZS electrical standards.
Environmental Benefits
- Durable design reducing replacement frequency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Hager Contactor 25A, 2NC, 230V~50Hz is available now for immediate purchase. Ideal for residential and industrial automation systems, providing reliable control and switching.
