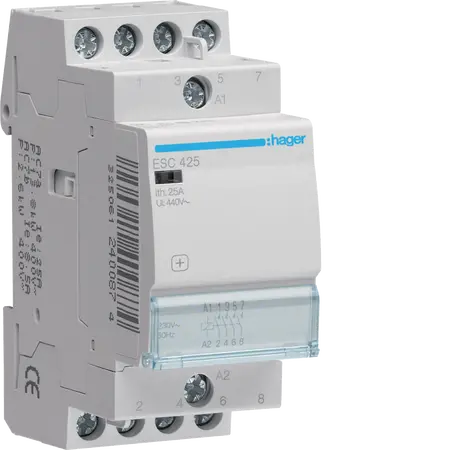

Contactor 25A 4NO 230V 50Hz High Voltage Ui 440V Grey Hager
Hager Contactor 25A 4NO 230V 50Hz High Voltage Ui 440V Grey. Ideal for motor control and industrial switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type of contacts: 4NO
- Number of contacts: 4
- Cross-section flexible conductor: 1 - 6 mm²
- Cross-section rigid conductor: 1 - 10 mm²
- Rated current: 25 A
- Number of modules: 2
- Frequency: 50 - 50 Hz
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 440 V
- Command voltage AC: 230 - 230 V
- Command voltage DC: 0 - 0 V
- Operating temperature: -10 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Number of mechanical operations: 100000
- Electric endurance in number of cycles: 30000
- Total power loss under IN: 7.50 W
- Inrush power absorbed: 21 VA
- Nominal tightening torque: 1.20 - 1.20 Nm
- Dimensions (H x L x W): 83mm x 60mm x 35.75mm
- Weight: 0.75 kg
Key Features
- Rated Current: 25A
- 4 Normally Open (NO) Contacts
- Rated Impulse Withstand Voltage: 4000V
- Rated Insulation Voltage: 440V
- Operating Temperature: -10 to 50°C
Professional Installation Requirements
- Installation by a certified electrician is recommended to ensure safety and compliance with local regulations.
Applications
- Residential: Home automation systems, lighting control
- Commercial: HVAC, industrial automation, and power distribution
Standards & Compliance
- Meets all relevant Australian safety and performance standards
Environmental Benefits
- Energy-efficient with low power loss and inrush power
- Designed to operate in a wide temperature range
Warranty Information
5 years warranty against manufacturing defects.
Available Now
The Hager Contactor is available now for immediate purchase, ideal for both residential and commercial electrical systems.
