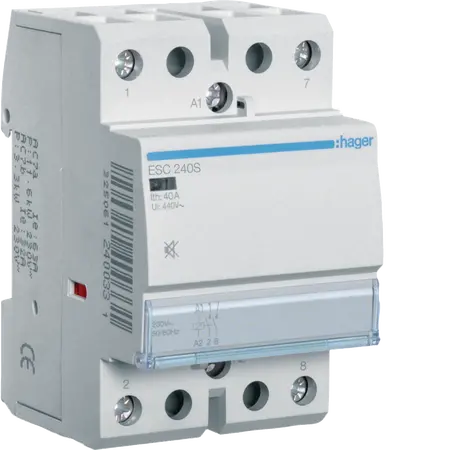

Contactor 40A 2NO 230V 50 60Hz 54mm Ui 440V Grey Hager

BRAND: :hager
SKU: ESC240S
$156.10 List price: $194.50
+ −
30 Days Return Electricians Unlock Trade Access
Hager Contactor 40A 2NO 230V 50 60Hz 54mm Ui 440V Grey. Ideal for motor control and industrial switching.
Technical Specifications
  • Connection Type: 2NO
  • Number of contacts: 2
  • Cross-section flexible conductor: 1.5 - 16 mm²
  • Cross-section rigid conductor: 1.5 - 25 mm²
  • Rated current: 40 A
  • Number of modules: 3
  • Frequency: 50 - 60 Hz
  • Rated impulse withstand voltage Uimp: 4000 V
  • Rated insulation voltage Ui: 440 V
  • Command voltage AC: 230 - 230 V
  • Command voltage DC: 0 - 0 V
  • Operating temperature: -10 - 50 °C
  • Storage/transport temperature: -40 - 80 °C
  • Number of mechanical operations: 100000
  • Electric endurance in number of cycles: 30000
  • Total power loss under IN: 10.90 W
  • Inrush power absorbed: 5.20 VA
  • Height: 85 mm
  • Width: 54 mm
  • Depth: 60 mm
  • Number of NO contacts: 2
  • Number of NC contacts: 0
  • Dimensions (H x L x W): 85mm x 60mm x 54mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 40A for optimal load management
  • 2 Normally Open (NO) contacts for standard circuiting
  • Compact size with a width of 54 mm for easy installation
Professional Installation Requirements
  • Professional installation by a qualified electrician is highly recommended to ensure safety and optimal performance.
Applications
  • Residential: Homes needing contactor integration
  • Commercial: Appropriate for complex systems needing contactors
  • Industrial: Suitable for specific non-intensive uses
Standards & Compliance
  • Complies with relevant Australian safety standards
Environmental Benefits
  • Designed to reduce magnetic noise
  • Compact design minimizes material usage
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Humfree Contactor 40A, 2NO, 230V~50/60Hz is available now for immediate purchase, ideal for controlling electrical circuits in residential, commercial, and non-intensive industrial applications.

Data Sheet (ESC240S, 186 Kb) [Download]

Certificate (reach_declaration_ESC240S1.pdf, 103 Kb) [Download]

Certificate (rohs_declaration_ESC240S1.pdf, 104 Kb) [Download]

Data Sheet (ESC240S.webp, 420 Kb) [Download]

Certificate (CONTACTORS.pdf, 197 Kb) [Download]

Certificate (DECLARATION_21_3002_09_21.pdf, 387 Kb) [Download]

Certificate (DECLARATION_21_1401_05_21.pdf, 225 Kb) [Download]
