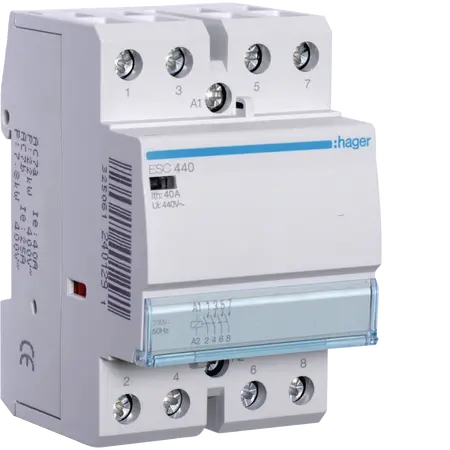

Contactor 40A 4NO 230V 50Hz Ui 440V Grey Hager
Hager Contactor 40A 4NO 230V 50Hz Ui 440V Grey. Ideal for motor control and industrial switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type of contacts: 4NO
- Number of contacts: 4
- Cross-section flexible conductor: 1.5 - 16 mm²
- Cross-section rigid conductor: 1.5 - 25 mm²
- Rated current: 40 A
- Number of modules: 3
- Frequency: 50 - 50 Hz
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 440 V
- Command voltage AC: 230 - 230 V
- Command voltage DC: 0 - 0 V
- Operating temperature: -10 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Number of mechanical operations: 100000
- Electric endurance in number of cycles: 30000
- Total power loss under IN: 14.30 W
- Inrush power absorbed: 62.50 VA
- Height: 85 mm
- Width: 54 mm
- Depth: 60 mm
- Number of NO contacts: 4
- Number of NC contacts: 0
- With switch for manual switch: No
- Dimensions (H x L x W): 85mm x 60mm x 54mm
- Weight: 0.1 kg
Key Features
- 4 normally open contacts (4NO)
- Rated current of 40A
- Operates at 230V with 50 Hz frequency
- Compact design suitable for small spaces
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure safety and compliance with electrical standards.
Applications
- Residential, commercial, and industrial electrical installations
- HVAC systems
- Lighting control
Standards & Compliance
- Complies with relevant AS/NZS standards for electrical safety
Environmental Benefits
- Supports energy efficiency with reduced power loss
- Durable design for long-term use, minimizing electronic waste
Warranty Information
5 years warranty against manufacturing defects.
Available Now
The Hager Contactor 40A, 4NO, 230V~50Hz is available for immediate purchase. Ideal for residential, commercial, and industrial electrical installations requiring reliable contact switching.
