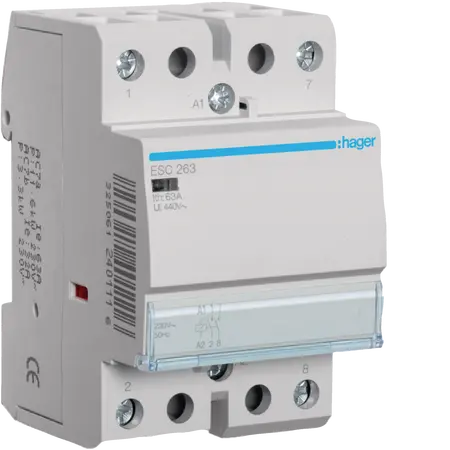

Contactor 63A 2NO 230V 50Hz Ui 440V Grey Hager
Hager Contactor 63A 2NO 230V 50Hz Ui 440V Grey. Ideal for motor control and industrial switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection Type: 2NO
- Number of contacts: 2
- Cross-section flexible conductor: 1.5 - 16 mm²
- Cross-section rigid conductor: 1.5 - 25 mm²
- Rated current: 63 A
- Number of modules: 3
- Frequency: 50 - 50 Hz
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 440 V
- Command voltage AC: 230 - 230 V
- Operating temperature: -10 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Number of mechanical operations: 100000
- Electric endurance in number of cycles: 30000
- Total power loss under IN: 11.50 W
- Inrush power absorbed: 62.50 VA
- Dimensions (H x L x W): 85mm x 60mm x 54mm
- Weight: 0.6 kg
Key Features
- 2 Normally Open (NO) contacts for versatile applications
- Rated current of 63 A suitable for high-load operations
- Compact design with a width of 54 mm and height of 85 mm
- Rated impulse withstand voltage of 4000 V for improved safety
Professional Installation Requirements
- Professional installation by a licensed electrician is required to ensure adherence to safety standards.
Applications
- Industrial: Motor starters, lighting control
- Commercial: HVAC systems, emergency lighting
- Residential: Electric heating installation
Standards & Compliance
- Complies with relevant AS/NZS standards for contactors
Environmental Benefits
- Designed for energy-efficient operation minimizing power losses
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Hager Contactor 63A, 2NO is available now for immediate purchase, ideal for controlling circuits in various commercial and residential applications.
