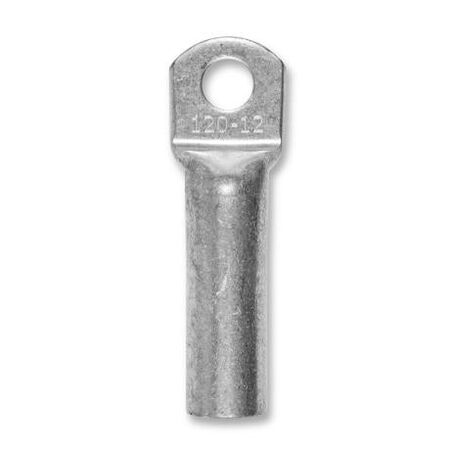

Copper Crimp Lug 120sqmm M12 Stud Non-Insulated Wattmaster
Wattmaster copper crimp lug for 120sqmm cable, M12 stud. Electro-tinned, to AS NZS 4325.1.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.9% Copper with electro tinned finish
- Size: 120mm² cross-sectional area
- Stud Size: M12
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 10mm x 120mm x 20mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Operating temperature range from -55°C to +155°C
- All sizes can be sold individually
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and safe connections.
Applications
- Electrical wiring connections for stranded to fine-stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects.
Available Now
The Wattmaster Crimp Lug Copper Long Barrel 120mm² M12 Stud is available for immediate purchase, ideal for electrical wiring and power distribution applications.
