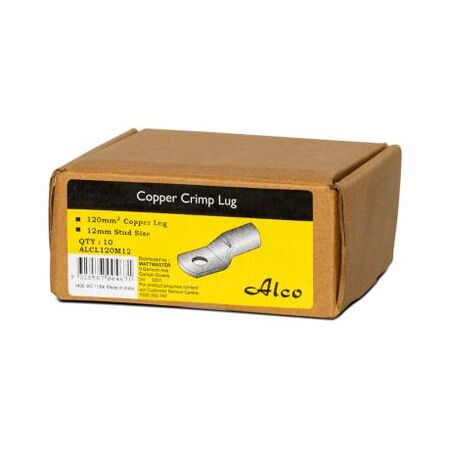

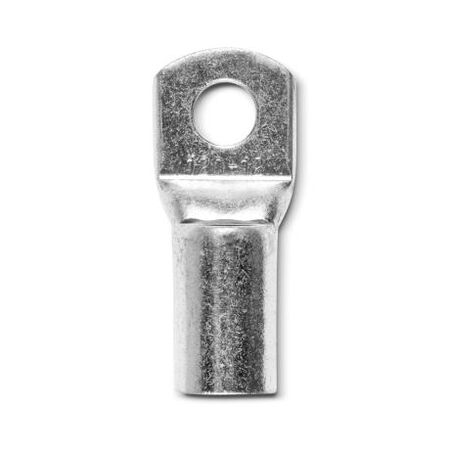

Copper Crimp Lug 120sqmm M12 Stud Ring Lug Pack of 10 Wattmaster
Wattmaster copper crimp lug for 120sqmm cable with M12 stud hole. High-conductivity tube lug for reliable terminations. Pack of 10.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M12
- Cable Size: 120mm²
- Operating Temperature: –55°C to +155°C
- Suitable for stranded to fine stranded copper cable
- Includes inspection port
- Complies with AS/NZS 4325.1:1995 (cl7) for cable sizes >10mm²
- Dimensions (H x L x W): 10mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Non–insulated electro grade copper crimp lugs
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Independently tested and conforms to Australian Standards
- Operating temperature range from –55°C to +155°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring and cabling connections
- Industrial and commercial electrical installations
- Suitable for stranded to fine stranded copper cables
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs and terminals
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Standard Non Insulated 120mm² M12 Stud is available for immediate purchase, ideal for electrical wiring and industrial applications.
