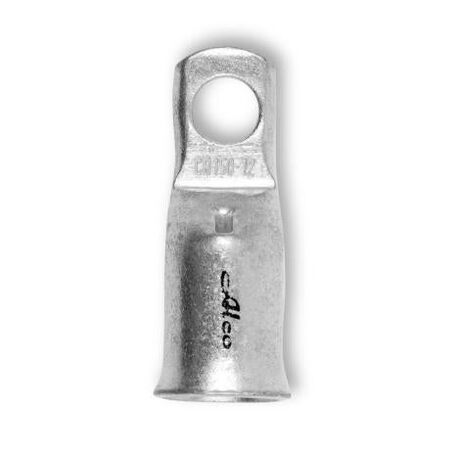

Copper Crimp Lug 150sqmm M12 Stud Narrow Palm Tinned Wattmaster
Wattmaster narrow-palm narrow palm copper crimp lug for 150sqmm cable, M12 stud. Electro-tinned, to AS NZS 4325.1.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M12
- Cable Size: 150mm²
- Operating Temperature Range: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Includes inspection port
- Dimensions (H x L x W): 10mm x 150mm x 40mm
- Weight: 0.1 kg
Key Features
- Non–insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable
- Narrow palm design to suit modular circuit breakers or narrow connections
- Electro tinned finish for corrosion resistance
- Includes inspection port for easy verification
- High conductivity with 99.9% copper content
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure connections.
Applications
- Electrical installations requiring secure cable connections
- Modular circuit breaker connections
- Industrial and commercial electrical wiring
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical lugs
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Narrow Palm 150mm² M12 Stud is available for immediate purchase, ideal for electrical wiring and circuit breaker connections.
