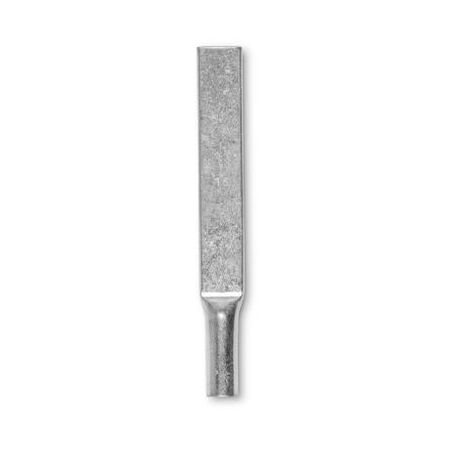

Copper Crimp Lug 16sqmm Long Palm Long Barrel Tinned Wattmaster
Wattmaster long palm long barrel copper crimp lug for 16sqmm cable, stud. Electro-tinned, high conductivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electro grade copper
- Cross-sectional area: 16mm²
- Finish: Electro tinned for corrosion resistance
- Operating temperature: -55°C to +155°C
- Classification: IEC 61238 compliant
- Design: Long palm and long barrel with blank palm (no hole)
- Includes inspection port
- Dimensions (H x L x W): 10mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable
- Long barrel and long palm design
- Blank palm with no hole
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Classification to IEC 61238
- Operating temperature range from -55°C to +155°C
- Available for individual sale
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring and connections for stranded to fine-stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from 99.9% copper which is recyclable and reduces environmental impact
- Electro tinned finish enhances durability, reducing the need for frequent replacements
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects.
Available Now
The Wattmaster Crimp Lug Copper Long Palm Long Barrel 16mm² Blank is available for immediate purchase, ideal for electrical wiring and industrial applications.
