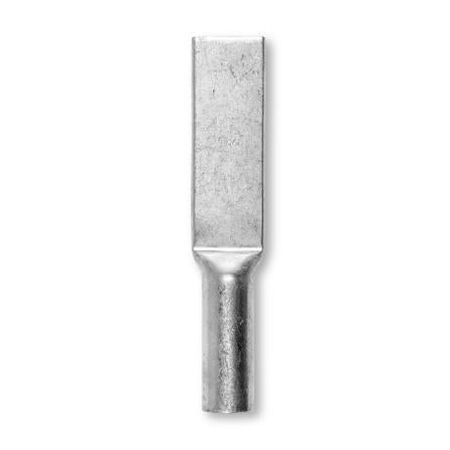

Copper Crimp Lug 185sqmm Long Palm Long Barrel Tinned Wattmaster
Wattmaster long palm long barrel copper crimp lug for 185sqmm cable, stud. Electro-tinned, high conductivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electro grade copper
- Size: 185mm²
- Finish: Electro tinned for corrosion resistance
- Palm: Long palm, blank with no hole
- Barrel: Long barrel
- Operating Temperature: -55°C to +155°C
- Standards: Classified to IEC 61238
- Inspection port included
- Dimensions (H x L x W): 15mm x 185mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Long barrel and long palm design
- Blank palm with no hole
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Classified to IEC 61238
- Operating temperature range from -55°C to +155°C
- Available for individual sale
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring and connections for stranded to fine-stranded copper cables
- Industrial and commercial electrical installations requiring high conductivity lugs
- Suitable for use in power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from 99.9% copper which is recyclable and reduces environmental impact
- Electro tinned finish enhances durability, reducing the need for frequent replacements
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard policy.
Available Now
The Wattmaster Crimp Lug Copper Long Palm Long Barrel 185mm² Blank is available for immediate purchase, ideal for electrical wiring and industrial applications.
