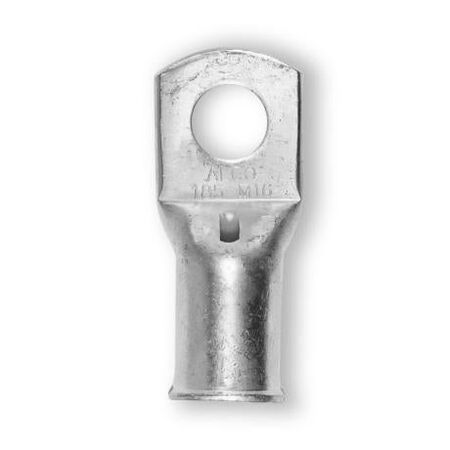

Copper Crimp Lug 185sqmm M16 Stud Bell Mouth Pack of 6 Wattmaster
Wattmaster bell mouth copper crimp lug for 185sqmm cable, M16 stud. Electro-tinned, to AS NZS 4325.1. Pack of 6.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electro grade copper
- Finish: Electro tinned
- Cable Size: 185mm²
- Stud Size: M16
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for cable sizes >10mm²
- Includes inspection hole
- Dimensions (H x L x W): 15mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for quality assurance
- Suitable for stranded to fine stranded copper cable
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring connections for stranded to fine stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs and connectors
Environmental Benefits
- Electro tinned finish enhances corrosion resistance, extending product life and reducing waste
- Durable copper material supports long-term reuse and recycling
Warranty Information
Warranty coverage as per Wattmaster standard terms and conditions.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 185mm² M16 Stud is available for immediate purchase, ideal for electrical wiring and industrial applications.
