Trade Discount 25%

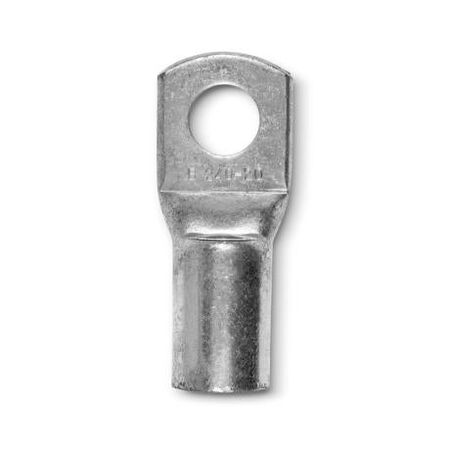

Copper Crimp Lug 240sqmm M20 Stud Ring Lug Pack of 6 Wattmaster
Wattmaster copper crimp lug for 240sqmm cable with M20 stud hole. High-conductivity tube lug for reliable terminations. Pack of 6.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.9% pure copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M20
- Cable Size: 240mm²
- Operating Temperature: –55°C to +155°C
- Suitable for stranded to fine stranded copper cable
- Includes inspection port
- Dimensions (H x L x W): 15mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Non–insulated electro grade copper crimp lugs
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Independently tested and conforms to Australian Standards
- Operating temperature range from –55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring and connections for industrial and commercial power distribution
- Suitable for use with stranded to fine stranded copper cables
- Ideal for electrical installations requiring high conductivity and corrosion resistance
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for crimp lugs >10mm²
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable electro tinned finish extends product life reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Standard Non Insulated 240mm² M20 Stud is available for immediate purchase, ideal for electrical wiring and power distribution applications.
