Trade Discount 25%

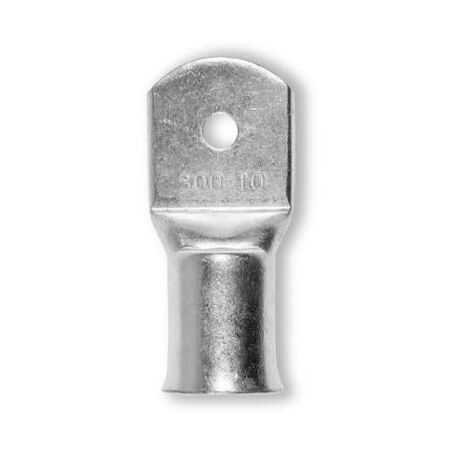

Copper Crimp Lug 300sqmm M10 Stud Bell Mouth Pack of 3 Wattmaster
Wattmaster bell mouth copper crimp lug for 300sqmm cable, M10 stud. Electro-tinned, to AS NZS 4325.1. Pack of 3.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electro grade copper with electro tinned finish
- Cable Size: 300mm²
- Stud Size: M10
- Non-insulated design
- Operating Temperature: -55°C to +155°C
- Includes inspection hole for crimp verification
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
- Dimensions (H x L x W): 15mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for secure crimp verification
- Suitable for stranded to fine stranded copper cable
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring connections for stranded to fine stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs greater than 10mm²
Environmental Benefits
- Electro tinned finish enhances corrosion resistance, extending product life and reducing waste
- Durable copper material supports long-term reuse and recycling
Warranty Information
Warranty coverage subject to manufacturer terms and conditions.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 300mm² M10 Stud is available for immediate purchase, ideal for electrical wiring and power distribution applications.
