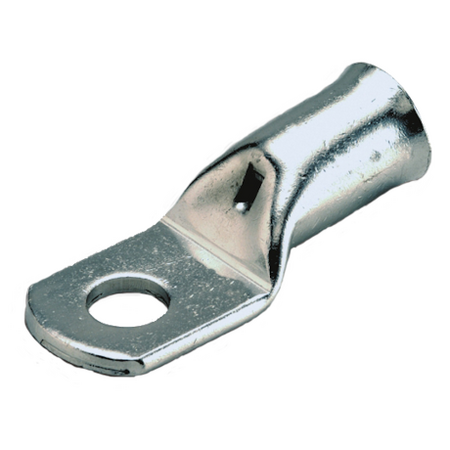

Copper Crimp Lug 35sqmm M12 Stud Bell Mouth Pack of 25 Wattmaster
Wattmaster bell mouth copper crimp lug for 35sqmm cable, M12 stud. Electro-tinned, to AS NZS 4325.1. Pack of 25.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electro grade copper with electro tinned finish
- Cable Size: 35mm²
- Stud Size: M12
- Operating Temperature: -55°C to +155°C
- Standard Compliance: AS/NZS 4325.1:1995 (cl7) for cable sizes >10mm²
- Includes inspection hole for crimp quality verification
- Dimensions (H x L x W): 10mm x 60mm x 20mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for secure crimp verification
- Suitable for stranded to fine stranded copper cable
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections for stranded to fine stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 for electrical connectors
Environmental Benefits
- Electro tinned finish enhances corrosion resistance, extending product life and reducing waste.
Warranty Information
Warranty against manufacturing defects for 1 year.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 35mm² M12 Stud is available for immediate purchase, ideal for electrical wiring and industrial applications.
