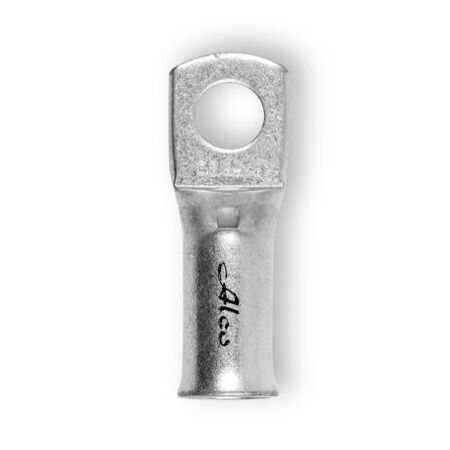

Copper Crimp Lug 35sqmm M8 Stud Narrow Palm Tinned Wattmaster
Wattmaster narrow-palm narrow palm copper crimp lug for 35sqmm cable, M8 stud. Electro-tinned, to AS NZS 4325.1.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M8
- Cable Size: 35mm²
- Operating Temperature Range: -55°C to +155°C
- Includes inspection port
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 5mm x 60mm x 20mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Narrow palm design for modular circuit breakers or narrow connections
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port for secure connections
- Suitable for stranded to fine-stranded copper cable
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical wiring connections for circuit breakers
- Stranded to fine-stranded copper cable terminations
- Industrial and residential electrical installations requiring narrow palm lugs
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical copper cable lugs
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Narrow Palm 35mm² M8 Stud is available for immediate purchase, ideal for electrical wiring and circuit breaker connections.
