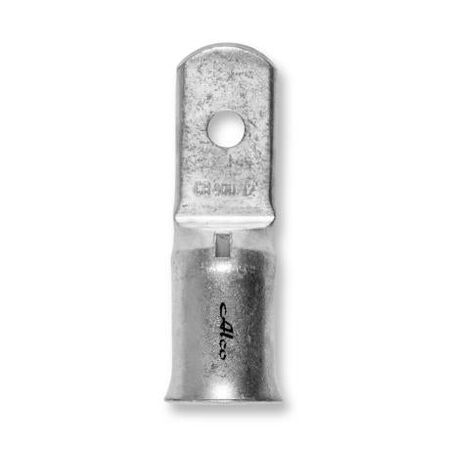

Copper Crimp Lug 400sqmm M12 Stud Narrow Palm Tinned Wattmaster
Wattmaster narrow-palm narrow palm copper crimp lug for 400sqmm cable, M12 stud. Electro-tinned, to AS NZS 4325.1.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.9% copper with electro tinned finish
- Size: 400mm² cable capacity
- Stud Size: M12
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 10mm x 100mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Narrow palm design for modular circuit breakers or narrow connections
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Can be sold individually
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and secure connections.
Applications
- Electrical installations requiring secure cable connections
- Circuit breaker connections in residential, commercial, and industrial settings
- Suitable for stranded to fine-stranded copper cables
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for crimp lugs
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific terms.
Available Now
The Wattmaster Crimp Lug Copper Narrow Palm 400mm² M12 Stud is available for immediate purchase, ideal for electrical and circuit breaker applications.
