Trade Discount 25%

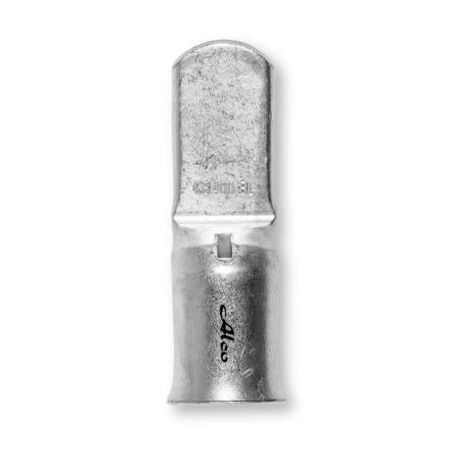

Copper Crimp Lug 400sqmm Narrow Palm Non-Insulated Wattmaster
Wattmaster narrow-palm narrow palm copper crimp lug for 400sqmm cable, stud. Electro-tinned, to AS NZS 4325.1.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Design: Narrow palm suitable for modular circuit breakers
- Includes inspection port
- Dimensions (H x L x W): 10mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Narrow palm design for modular circuit breakers or narrow connections
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port for easy verification
- Suitable for stranded to fine-stranded copper cable
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical installations requiring secure cable connections
- Modular circuit breaker connections
- Industrial and commercial electrical wiring
- Stranded to fine-stranded copper cable terminations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (Electrical & Electronics)
Environmental Benefits
- High conductivity reduces energy loss in electrical connections
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Narrow Palm 400mm² is available for immediate purchase, ideal for electrical wiring and circuit breaker connections.
