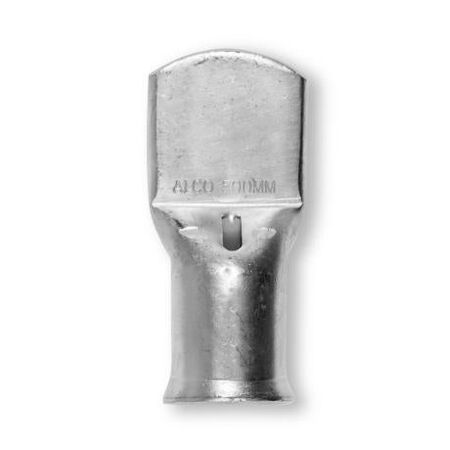

Copper Crimp Lug 500sqmm Bell Mouth Tinned Pack of 3 Wattmaster
Wattmaster bell mouth copper crimp lug for 500sqmm cable, stud. Electro-tinned, to AS NZS 4325.1. Pack of 3.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electro grade copper with electro tinned finish
- Cable Size: 500mm²
- Type: Non-insulated bell mouth crimp lug
- Operating Temperature: -55°C to +155°C
- Includes inspection hole for quality control
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for quality assurance
- Suitable for stranded to fine stranded copper cable
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring for industrial and commercial power distribution
- Suitable for use with stranded to fine stranded copper cables
- Ideal for electrical connections requiring high conductivity and durability
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro tinned finish enhances corrosion resistance, extending product life and reducing waste
- Durable copper material supports long-term reuse and recycling
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 500mm² Cable Blank Palm is available for immediate purchase, ideal for electrical wiring and power distribution applications.
