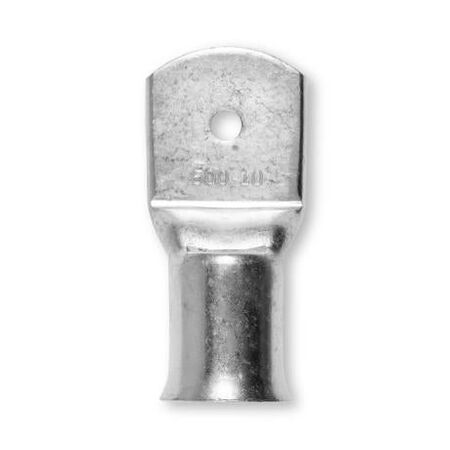

Copper Crimp Lug 500sqmm M10 Stud Bell Mouth Pack of 3 Wattmaster

BRAND: Alco
SKU: ALCLBM500M10/3
$83.90 List price: $111.90
+ −
30 Days Return Electricians Unlock Trade Access
Wattmaster bell mouth copper crimp lug for 500sqmm cable, M10 stud. Electro-tinned, to AS NZS 4325.1. Pack of 3.
Technical Specifications
  • Material: Electro grade copper with electro tinned finish
  • Stud Size: M10
  • Cable Size: 500mm²
  • Operating Temperature: -55°C to +155°C
  • Standard Compliance: AS/NZS 4325.1:1995 (cl7) for cable sizes >10mm²
  • Includes inspection hole for crimp verification
  • Dimensions (H x L x W): 15mm x 120mm x 40mm
  • Weight: 0.15 kg
Key Features
  • Non-insulated electro grade copper crimp lugs
  • Electro tinned finish for high conductivity
  • Includes inspection hole for secure crimping verification
  • Suitable for stranded to fine stranded copper cable
  • Operating temperature range from -55°C to +155°C
Professional Installation Requirements
  • Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
  • Electrical connections for stranded to fine stranded copper cables
  • Industrial and commercial electrical installations
  • Power distribution and grounding systems
Standards & Compliance
  • Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs and connectors
Environmental Benefits
  • Electro tinned finish enhances corrosion resistance, extending product life and reducing waste
  • Durable copper material supports long-term reuse and recycling
Warranty Information

Warranty against manufacturing defects for 1 year.

Available Now

The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 500mm² M10 Stud is available for immediate purchase, ideal for electrical and industrial cable connection applications.
