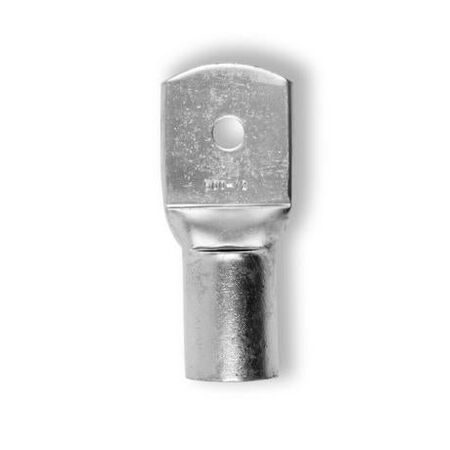

Copper Crimp Lug 500sqmm M12 Stud Standard Pack of 3 Wattmaster
Wattmaster standard copper crimp lug for 500sqmm cable, M12 stud. Electro-tinned, to AS NZS 4325.1. Pack of 3.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M12
- Cable Size: 500mm²
- Operating Temperature: –55°C to +155°C
- Includes inspection port
- Suitable for stranded to fine stranded copper cable
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.15 kg
Key Features
- Non–insulated electro grade copper crimp lugs
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Independently tested and conforms to Australian Standards
- Operating temperature range from –55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring and connections in industrial and commercial electrical installations
- Suitable for use with stranded to fine stranded copper cables
- Ideal for power distribution and grounding applications
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs greater than 10mm²
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable electro tinned finish extends product life reducing waste
Warranty Information
Warranty coverage subject to manufacturer terms and conditions; typically includes defects in materials and workmanship.
Available Now
The Wattmaster Crimp Lug Copper Standard Non Insulated 500mm² M12 Stud is available for immediate purchase, ideal for electrical wiring and power distribution applications.
