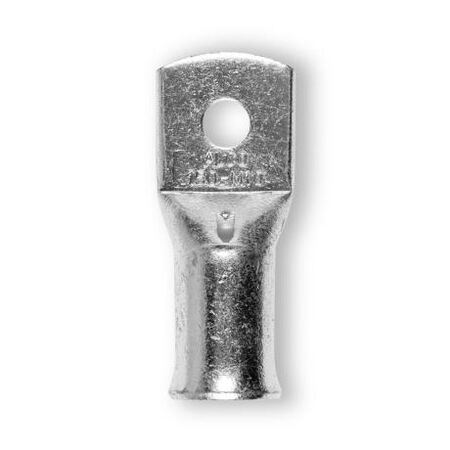

Copper Lug 150sqmm M10 Stud Bell Mouth Pack of 10 Wattmaster
Wattmaster bell mouth copper crimp lug for 150sqmm cable, M10 stud. Electro-tinned, to AS NZS 4325.1. Pack of 10.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electro grade copper with electro tinned finish
- Cable Size: 150mm²
- Stud Size: M10
- Operating Temperature: -55°C to +155°C
- Standard Compliance: AS/NZS 4325.1:1995 (cl7) (>10mm²)
- Includes inspection hole for crimp verification
- Dimensions (H x L x W): 10mm x 100mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for secure crimping verification
- Suitable for stranded to fine stranded copper cable
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring connections for stranded to fine stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 for cable lugs and connectors
Environmental Benefits
- Made from recyclable copper material
- Durable design reduces need for frequent replacements
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 150mm² M10 Stud is available for immediate purchase, ideal for electrical wiring and power distribution applications.
