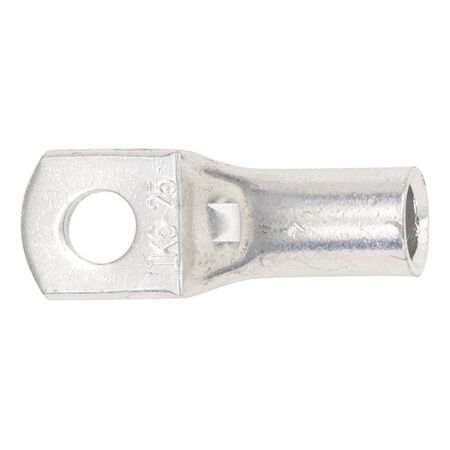

Copper Pipe Cable Lug 25mm2 Pack of 10 Wurth

BRAND: Wurth
SKU: 9672255
$62.50 List price: $78.50
10 PCS ($6.25 per PCS)
+ −
30 Days Return Electricians Unlock Trade Access
Wurth copper cable lug, 25mm2, tin-plated, bell mouth entry. Ideal for copper conductor stud terminations.
Technical Specifications
  • Wire cross section: 25 mm²
  • Flange hole: M5
  • Wire diameter (d1): 7.0 mm
  • Diameter of hole (d2): 5.3 mm
  • Distance between sleeve end and centre of hole (e): 29.5 mm
  • Sleeve length (a): 15.0 mm
  • Width (b): 14.0 mm
  • Max. temperature resistance: 125 °C
  • Material: Electrolytic copper
  • Surface: Tin plated
  • Dimensions (H x L x W): 15mm x 44.5mm x 14mm
  • Weight: 0.05 kg
Key Features
  • Common design similar to DIN standards
  • Inspection hole allows for cable verification by pull-out test
  • Tin plated electrolytic copper for excellent conductivity and corrosion resistance
  • Max temperature resistance of 125 °C
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure proper cable connection and safety compliance.
Applications
  • Electrical wiring and cable termination in industrial and residential installations
  • Suitable for use in electrical panels and machinery requiring secure cable connections
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable materials reduce the need for frequent replacements
  • Tin plating enhances corrosion resistance, extending product life
Warranty Information

Standard manufacturer warranty against defects applies.

Available Now

Wurth Pipe Cable Lug with Inspection Hole 10 PCS is available for immediate purchase, ideal for electrical wiring and cable termination applications.
