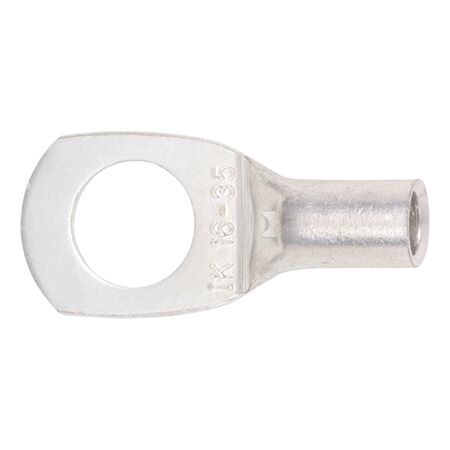

Copper Pipe Cable Lug 35mm2 Pack of 10 Wurth
Wurth copper cable lug, 35mm2, tin-plated, bell mouth entry. Ideal for copper conductor stud terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Wire cross section: 35 mm²
- Flange hole: M16
- Wire diameter (d1): 8.5 mm
- Diameter of hole (d2): 17.0 mm
- Distance between sleeve end and centre of hole (e): 42.0 mm
- Sleeve length (a): 17.0 mm
- Width (b): 26.0 mm
- Max. temperature resistance: 125 °C
- Material: Electrolytic copper
- Surface: Tin plated
- Dimensions (H x L x W): 17mm x 59mm x 26mm
- Weight: 0.05 kg
Key Features
- Inspection hole allows for easy verification of cable insertion
- Tin plated electrolytic copper material ensures excellent conductivity and corrosion resistance
- Suitable for wire cross section of 35 mm²
- Max temperature resistance of 125 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper cable connection and safety compliance.
Applications
- Electrical wiring and cable termination in industrial and residential installations
- Suitable for use in electrical panels and machinery requiring secure cable connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Pipe Cable Lug with Inspection Hole 10 PCS is available for immediate purchase, ideal for electrical wiring and cable termination applications.
