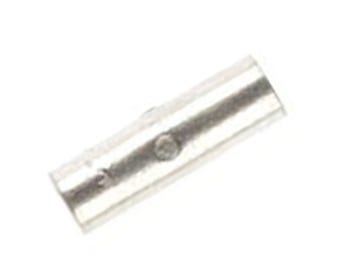

Copper Sleeve 10mm² Cable | High Conductivity | Tin-Plated | 155°C Rated by Cabac
Copper sleeve with 10mm² size and high conductivity—ideal for electrical power connectivity. Built for industrial and commercial installations, with tin plating for corrosion resistance and 155°C temperature rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

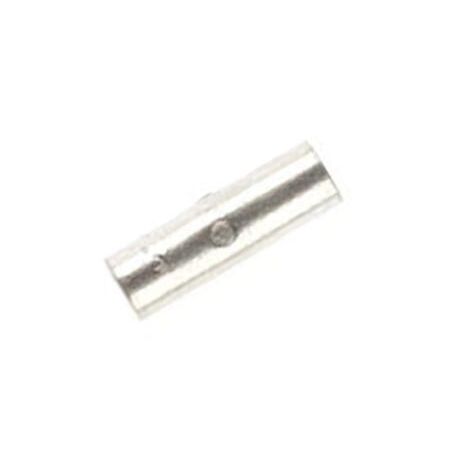

Product Name/Title: Copper Sleeve 10mm2 Cable
Brand: Cabac
SKU: CAS10
Alternatively Known As: Copper Cable Sleeve, Copper Link, Copper Crimp Sleeve, Electrical Cable Connector, Copper Lug Sleeve
Technical Specifications
- Nominal Conductor Size: 10mm²
- Stranding: 7 strands of 1.35mm diameter
- Inner Diameter: 4.7mm
- Conductive Material: 99.95% pure copper
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductility: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55°C to 155°C
- Electroplating Material: 99.9% pure tin
- Electroplating Thickness: 4 microns
- Tooling Compatibility: Interchangeable with Cable Accessories, Utilux, and Burndy tooling
- Dimensions (H x L x W): 4.7mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ IACS high conductivity oxygen-free copper
- Capable of withstanding continuous operating temperature of 155°C
- Crimped with CABAC and MSS Power standard tooling dies
- Electroplated with 99.9% pure tin for corrosion resistance
- Fully annealed for optimal ductility and tensile strength
Professional Installation Requirements
- Should be crimped using standard Australian tooling by a qualified electrician to ensure secure and compliant connections.
Applications
- Electrical power connectivity for cable terminations
- Industrial and commercial electrical installations
- Suitable for use with standard Australian crimping tooling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable materials extend product life and reduce waste
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms.
Available Now
The Cabac Copper Sleeve 10mm2 Cable is available now for immediate purchase. Ideal for electrical power connectivity and cable termination applications.
