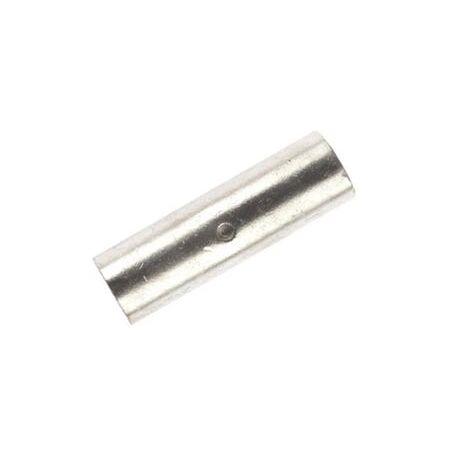

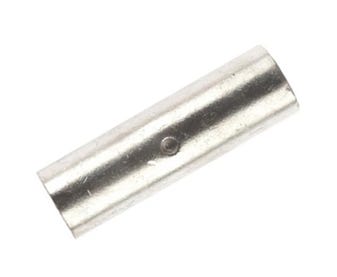

Copper Sleeve 240mm² Cable | High Conductivity | Tin-Plated | 155°C Rated by Cabac
Copper sleeve with 240mm² size and high conductivity—ideal for industrial, commercial, and residential electrical installations. Built for superior performance, with tin-plating for corrosion resistance and 155°C temperature rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sleeve 240mm2 Cable
Brand: Cabac
SKU: CAS240
Alternatively Known As: Copper Cable Sleeve, Copper Cable Link, Copper Crimp Sleeve, Electrical Copper Connector
Technical Specifications
- Nominal Conductor Size: 240 mm²
- Stranding Number/Diameter: 61 strands of 2.25 mm diameter
- Inner Diameter Size: 21.2 mm
- Conductive Material: 99.95% pure copper
- Oxygen Content: Maximum 30 ppm
- Tensile Strength: 200 MPa
- Ductility Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55°C to 155°C
- Electroplating Material: 99.9% pure tin with lead and antimony
- Electroplating Thickness: 4 microns
- Dimensions (H x L x W): 10mm x 50mm x 21mm
- Weight: 0.2 kg
Key Features
- Made from 99.9%+ IACS high conductivity oxygen-free copper
- Capable of withstanding continuous operating temperatures up to 155°C
- Crimped with CABAC and MSS Power standard tooling dies
- Electroplated with 99.9% pure tin for corrosion resistance
- Tooling interchangeable with Cable Accessories, Utilux, and Burndy
Professional Installation Requirements
- Should be crimped using standard Australian tooling by a qualified electrician or technician to ensure proper electrical connection and safety.
Applications
- Electrical power connectivity for high conductivity copper cable connections
- Suitable for use in industrial, commercial, and residential electrical installations
- Used for crimping with standard Australian tooling for secure electrical connections
Standards & Compliance
- Complies with AS4325 Part 1 – Copper Conductors
Environmental Benefits
- High conductivity copper reduces energy loss in electrical connections
- Durable and corrosion-resistant materials extend product lifespan, reducing waste
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Copper Sleeve 240mm2 Cable Link is available now for immediate purchase. Ideal for electrical power connectivity applications requiring high conductivity and temperature resistance.
