Copper Sleeve 25mm2 Cable | High Conductivity | Tin-Plated | Cabac
Copper sleeve with 25mm2 size and high conductivity—ideal for electrical power connectivity. Built for industrial, commercial, and residential wiring, with tin-plating for corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

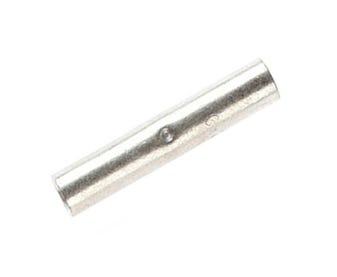

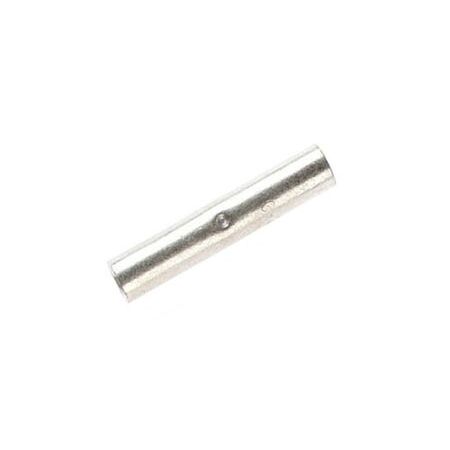

Product Name/Title: Copper Sleeve 25mm2 Cable
Brand: Cabac
SKU: CAS25
Alternatively Known As: Copper Cable Sleeve, Copper Cable Link, Copper Crimp Sleeve, Electrical Copper Sleeve 25mm2
Technical Specifications
- Nominal Conductor Size: 25mm2
- Stranding Number/Diameter: 19 strands of 1.35mm
- Inner Diameter Size: 7.1mm
- Conductive Material: 99.95% pure copper
- Oxygen Content: Max 30 ppm
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55°C to 155°C
- Electroplating Material: 99.9% pure tin with lead and antimony
- Electroplating Thickness: 4 microns
- Tooling Compatibility: Interchangeable with Cable Accessories, Utilux, and Burndy tooling
- Dimensions (H x L x W): 7mm x 50mm x 25mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ IACS high conductivity oxygen-free copper
- Capable of withstanding continuous operating temperatures up to 155°C
- Crimped with standard Australian tooling
- Electroplated with 99.9% pure tin for corrosion resistance
- Fully annealed for optimal ductility and tensile strength
Professional Installation Requirements
- Should be crimped using standard Australian tooling by a qualified electrician to ensure proper electrical connection and safety.
Applications
- Electrical power connectivity for 25mm2 cables
- Suitable for use in electrical installations requiring high conductivity copper links
- Ideal for industrial, commercial, and residential electrical wiring
Standards & Compliance
- Complies with AS4325 Part 1 – Copper Cable Sleeves and Links
Environmental Benefits
- High conductivity copper reduces energy loss in electrical systems
- Durable and corrosion-resistant materials extend product lifespan, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Copper Sleeve 25mm2 Cable Link is available for immediate purchase. Ideal for electrical power connectivity applications requiring high conductivity and temperature resistance.
