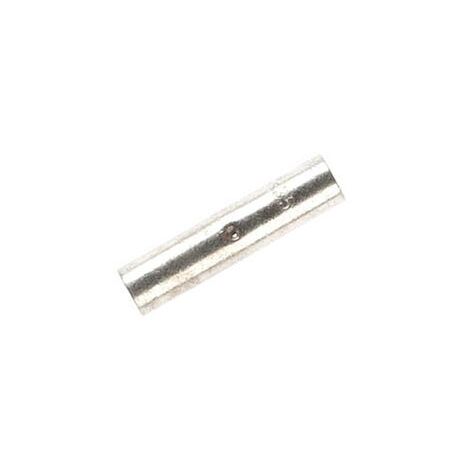

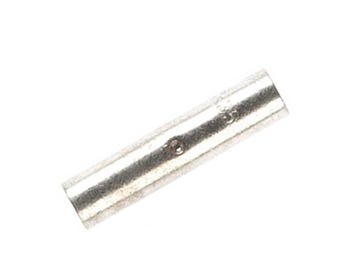

Copper Sleeve 35mm2 Cable | High Conductivity | Tin Plated | 155°C Rated by Cabac
Copper sleeve with 35mm² size and high conductivity—ideal for industrial and commercial electrical installations. Built for secure connections, with tin plating for corrosion resistance and 155°C temperature rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sleeve 35mm2 Cable
Brand: Cabac
SKU: CAS35
Alternatively Known As: Copper Cable Sleeve, Copper Cable Link, 35mm2 Copper Lug, Electrical Copper Sleeve, High Conductivity Copper Link
Technical Specifications
- Nominal Conductor Size: 35mm²
- Stranding Number/Diameter: 19 strands of 1.53mm each
- Inner Diameter Size: 8.2mm
- Conductive Material: 99.95% pure copper
- Oxygen Content: Maximum 30 ppm
- Tensile Strength: 200 MPa
- Ductility Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55°C to 155°C
- Electroplating Material: 99.9% pure tin with lead and antimony
- Electroplating Thickness: 4 microns
- Tooling Compatibility: Interchangeable with Cable Accessories, Utilux, and Burndy tooling
- Dimensions (H x L x W): 10mm x 50mm x 35mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ IACS high conductivity oxygen-free copper
- Capable of withstanding continuous operating temperatures up to 155°C
- Crimped with standard Australian tooling compatible with CABAC and MSS Power dies
- Electroplated with 99.9% pure tin for enhanced corrosion resistance
- Fully annealed for optimal ductility and tensile strength
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tooling to ensure secure and compliant connections.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- Used in electrical lugs and links for secure cable connections
- Suitable for high conductivity copper cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- Oxygen-free copper reduces oxidation and extends product lifespan
- High conductivity reduces energy loss in electrical systems
- Tin electroplating enhances corrosion resistance, reducing replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms.
Available Now
The Cabac Copper Sleeve 35mm2 Cable Link is available now for immediate purchase. Ideal for electrical power connectivity applications requiring high conductivity and temperature resistance.
