Copper Sleeve 400mm² Cable | High Conductivity | Tin Electroplated | 155°C Rated by Cabac
Copper sleeve with 400mm² size and high conductivity—ideal for industrial and commercial electrical installations. Built for reliable connections, with tin electroplating and 155°C temperature tolerance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

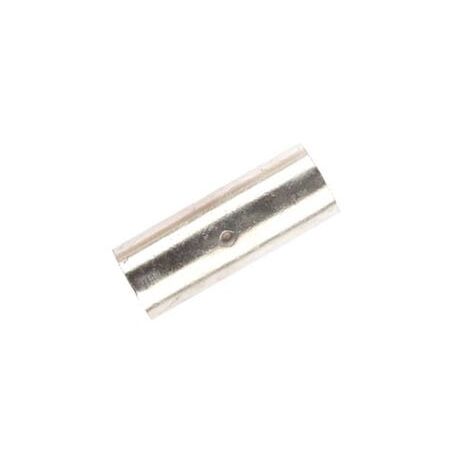

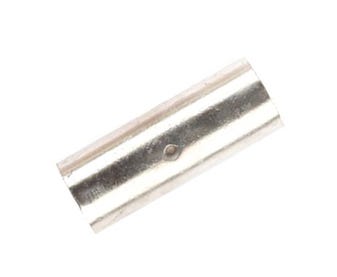

Product Name/Title: Copper Sleeve 400mm2 Cable
Brand: Cabac
SKU: CAS400
Alternatively Known As: Copper Cable Sleeve, Copper Cable Link, Copper Crimp Sleeve, Electrical Copper Sleeve, 400mm2 Copper Link
Technical Specifications
- Nominal Conductor Size: 400 mm²
- Stranding Number/Diameter: 61 strands of 2.85 mm
- Inner Diameter Size: 26.8 mm
- Conductive Material: 99.95% pure copper
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55 to 155 °C
- Electroplating Material: 99.9% pure tin
- Other Metals: Lead and antimony
- Electroplating Thickness: 4 microns
- Dimensions (H x L x W): 10mm x 100mm x 27mm
- Weight: 0.5 kg
Key Features
- Made from 99.9%+ IACS high conductivity copper
- Oxygen-free copper capable of withstanding continuous operating temperature of 155°C
- Crimped with CABAC and MSS Power standard tooling dies
- Electroplated with 99.9% pure tin with 4 microns thickness
- Tooling interchangeable with Cable Accessories, Utilux, and Burndy
Professional Installation Requirements
- Should be crimped with standard Australian tooling by a qualified electrician to ensure proper installation and safety.
Applications
- Electrical power connectivity for high conductivity copper cable connections
- Suitable for use in industrial and commercial electrical installations
- Used in crimping with standard Australian tooling for secure electrical connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- High conductivity copper reduces energy loss in electrical systems
- Durable and long-lasting material reduces need for frequent replacements
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Copper Sleeve 400mm2 Cable Link is available now for immediate purchase. Ideal for electrical power connectivity applications requiring high conductivity and temperature resistance.
