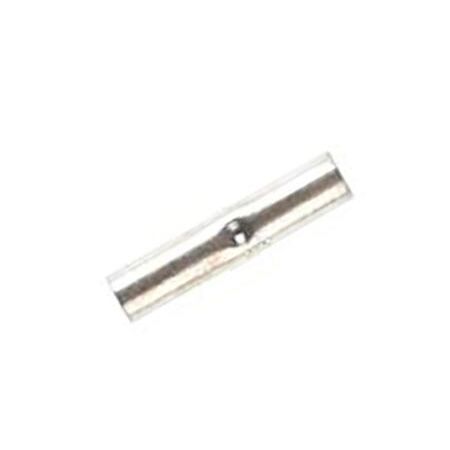

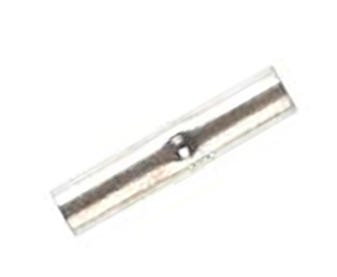

Copper Sleeve 4mm2 Cable | High Conductivity | Tin Electroplated | Cabac
Copper sleeve with 4mm² size and high conductivity—ideal for electrical installations. Built for durability, with tin electroplating for corrosion resistance and compatibility with standard Australian tooling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sleeve 4mm2 Cable
Brand: Cabac
SKU: CAS4
Alternatively Known As: Copper Cable Sleeve, Copper Link 4mm2, Copper Crimp Sleeve, Electrical Copper Connector, Copper Cable Lug
Technical Specifications
- Nominal Conductor Size: 4mm²
- Stranding: 7 strands of 0.85mm diameter
- Inner Diameter Size: 3.1mm
- Conductive Material: 99.95% pure copper
- Oxygen Content: Maximum 30 ppm
- Tensile Strength: 200 MPa
- Ductility Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55°C to 155°C
- Electroplating Material: 99.9% pure tin with lead and antimony
- Electroplating Thickness: 4 microns
- Tooling Compatibility: Interchangeable with Cable Accessories, Utilux, and Burndy tooling
- Dimensions (H x L x W): 30mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ IACS high conductivity oxygen-free copper
- Capable of withstanding continuous operating temperatures up to 155°C
- Crimped with standard Australian tooling compatible with CABAC and MSS Power dies
- Electroplated with 99.9% pure tin for enhanced corrosion resistance
- Fully annealed for optimal ductility and tensile strength
Professional Installation Requirements
- Should be crimped using standard Australian tooling by a qualified electrician to ensure proper electrical connection and safety.
Applications
- Electrical power connectivity for 4mm2 cables
- Suitable for use in electrical installations requiring high conductivity copper links
- Ideal for industrial, commercial, and residential electrical wiring
Standards & Compliance
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- High conductivity reduces energy loss and improves electrical efficiency
- Durable materials extend product life, reducing waste and replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Copper Sleeve 4mm2 Cable is available for immediate purchase, ideal for electrical power connectivity applications requiring high-quality copper links.
