Home/Electrical/Cabling/Cable/Building Wire/Copper Sleeve 500mm2 Cable | High Conductivity | Tin Electroplated | 155°C Rated by Cabac

Trade Discount 17%

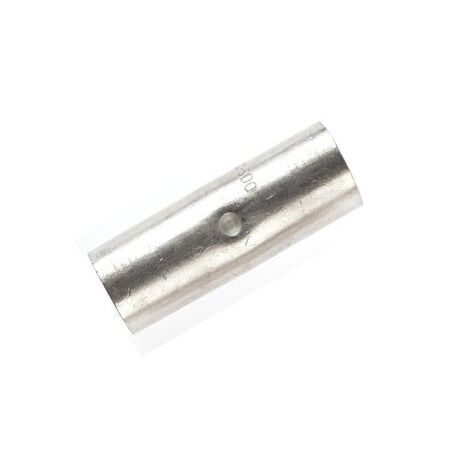

Copper Sleeve 500mm2 Cable | High Conductivity | Tin Electroplated | 155°C Rated by Cabac

BRAND: CABAC

SKU: CAS500

$31.70 List price: $38.30

+ −

30 Days Return Delivery Options

Copper sleeve with 500mm² size and high conductivity—ideal for industrial and commercial electrical installations. Built for reliable connections, with tin electroplating for enhanced corrosion resistance and 155°C temperature rating.

Description

Product Name/Title: Copper Sleeve 500mm2 Cable

Brand: Cabac

SKU: CAS500

Alternatively Known As: Copper Cable Sleeve, Copper Link, Copper Crimp Sleeve, Electrical Copper Connector, 500mm2 Copper Lug

Technical Specifications

Nominal Conductor Size: 500 mm²
Stranding Number/Diameter: 61 strands of 3.20 mm
Inner Diameter Size: 30.0 mm
Conductive Material: 99.95% pure copper
Oxygen Content: Maximum 30 ppm
Tensile Strength: 200 MPa
Ductile Rating: 40%
Final Metal State: Fully annealed
Operating Temperature Range: -55°C to 155°C
Electroplating Material: 99.9% pure tin with lead and antimony
Electroplating Thickness: 4 microns
Dimensions (H x L x W): 10mm x 50mm x 30mm
Weight: 0.5 kg

Key Features

Made from 99.9%+ IACS high conductivity oxygen-free copper
Capable of withstanding continuous operating temperatures up to 155°C
Crimped with CABAC and MSS Power standard tooling dies
Electroplated with 99.9% pure tin for enhanced conductivity and corrosion resistance
Tooling interchangeable with Cable Accessories, Utilux, and Burndy

Professional Installation Requirements

Should be crimped using standard Australian tooling by a qualified electrician to ensure proper installation and safety.

Applications

Electrical power connectivity for high conductivity copper cable connections
Suitable for use in industrial and commercial electrical installations
Used in crimping applications with standard Australian tooling

Standards & Compliance

Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Complies with AS4325 Part 1 Australia

Environmental Benefits

High conductivity copper reduces energy loss in electrical systems
Durable and corrosion-resistant materials extend product lifespan, reducing waste

Warranty Information

Warranty details available upon request from the manufacturer.

Available Now

The Cabac Copper Sleeve 500mm2 Cable Link is available now for immediate purchase. Ideal for electrical power connectivity applications requiring high conductivity and temperature resistance.
