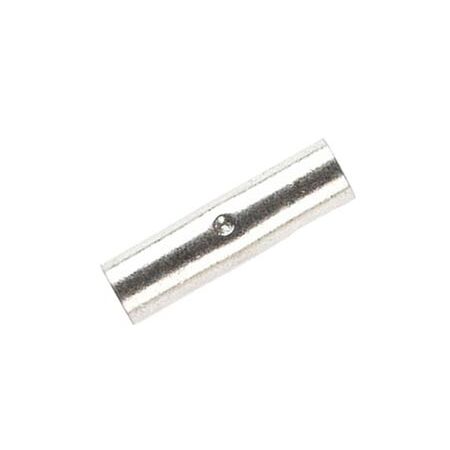

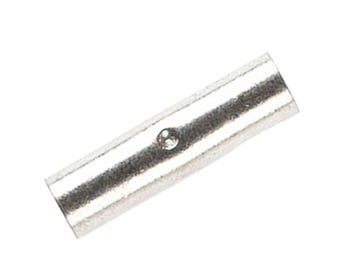

Copper Sleeve 50mm² Cable | High Conductivity | Tin-Plated | 155°C Rated by Cabac
Copper sleeve with 50mm² size and high conductivity—ideal for electrical power connectivity. Built for industrial and commercial systems, with tin-plating for corrosion resistance and 155°C temperature rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sleeve 50mm2 Cable
Brand: Cabac
SKU: CAS50
Alternatively Known As: Copper Cable Link, Copper Crimp Sleeve, Electrical Copper Sleeve, Copper Cable Connector
Technical Specifications
- Nominal Conductor Size: 50mm²
- Stranding Number/Diameter: 19 strands of 1.78mm
- Inner Diameter Size: 9.5mm
- Conductive Material: 99.95% pure copper
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductility Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55°C to 155°C
- Electroplating Material: 99.9% pure tin with lead & antimony
- Electroplating Thickness: 4 microns
- Tooling Compatibility: Interchangeable with Cable Accessories, Utilux, and Burndy tooling
- Dimensions (H x L x W): 10mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ IACS high conductivity copper
- Oxygen-free copper capable of withstanding continuous operating temperature of 155°C
- Crimped with standard Australian tooling
- Electroplated with 99.9% pure tin for corrosion resistance
- Fully annealed for ductility and tensile strength
Professional Installation Requirements
- Should be crimped using standard Australian tooling by a qualified electrician or technician to ensure proper connection and safety.
Applications
- Electrical power connectivity
- Cable linking and crimping in electrical installations
- Suitable for use in industrial and commercial electrical systems
Standards & Compliance
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable materials extend product life, reducing waste
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms.
Available Now
The Cabac Copper Sleeve 50mm2 Cable Link is available now for immediate purchase. Ideal for electrical power connectivity and cable linking applications.
