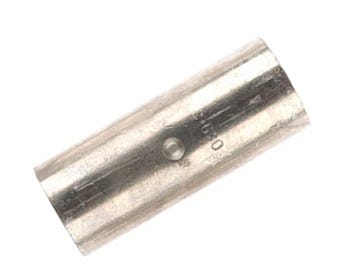

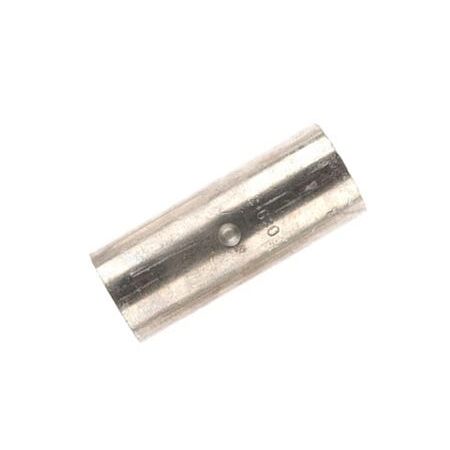

Copper Sleeve 630mm² Cable | High Conductivity | Oxygen-Free | Tin-Plated by Cabac
Copper sleeve with 630mm² size and high conductivity—ideal for industrial and commercial electrical installations. Built for superior performance, with oxygen-free copper and tin plating for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sleeve 630mm2 Cable
Brand: Cabac
SKU: CAS630
Alternatively Known As: Copper Cable Sleeve, Copper Cable Link, Copper Crimp Sleeve, Electrical Copper Connector
Technical Specifications
- Nominal Conductor Size: 630 mm²
- Stranding Number/Diameter: 127 strands of 2.52 mm diameter
- Inner Diameter Size: 34.0 mm
- Conductive Material: 99.95% pure copper
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55 to 155 °C
- Electroplating Material: 99.9% pure tin with lead and antimony
- Electroplating Thickness: 4 microns
- Dimensions (H x L x W): 10mm x 630mm x 34mm
- Weight: 0.5 kg
Key Features
- Made from 99.9%+ IACS high conductivity annealed copper
- Oxygen-free copper capable of withstanding continuous operating temperature of 155°C
- Crimped with CABAC and MSS Power standard tooling dies
- Electroplated with 99.9% pure tin with 4 microns thickness
- Tooling interchangeable with Cable Accessories, Utilux, and Burndy
Professional Installation Requirements
- Should be crimped with standard Australian tooling by a qualified electrician or technician to ensure proper connection and safety.
Applications
- Electrical power connectivity for high conductivity copper cable connections
- Suitable for use in industrial and commercial electrical installations
- Used for crimping with standard Australian tooling in electrical wiring
Standards & Compliance
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- High conductivity copper reduces energy loss in electrical systems
- Durable and long-lasting material reduces need for frequent replacements
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Copper Sleeve 630mm2 Cable Link is available now for immediate purchase. Ideal for electrical power connectivity applications requiring high conductivity and temperature resistance.
