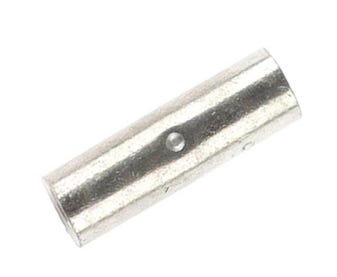

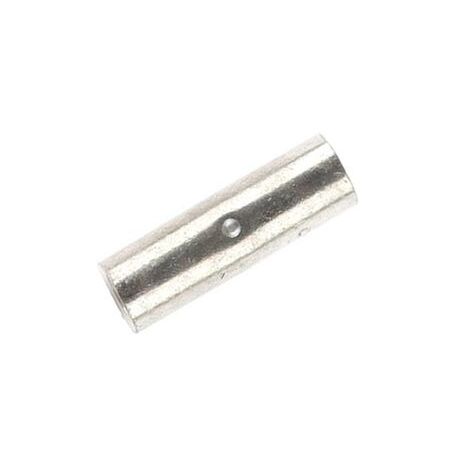

Copper Sleeve 95mm² Cable | High Conductivity | Tin-Plated | 155°C Rated by Cabac
Copper sleeve with 95mm² size and high conductivity—ideal for industrial and commercial electrical installations. Built for reliable power connectivity, with tin plating for corrosion resistance and compatibility with standard Australian tooling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sleeve 95mm2 Cable
Brand: Cabac
SKU: CAS95
Alternatively Known As: Copper Cable Sleeve, Copper Cable Link, Copper Crimp Sleeve, Electrical Copper Connector, Copper Cable Lug Sleeve
Technical Specifications
- Nominal Conductor Size: 95 mm²
- Stranding: 37 strands of 1.78 mm diameter
- Inner Diameter Size: 13.4 mm
- Conductive Material: 99.95% pure copper
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductility Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55°C to 155°C
- Electroplating Material: 99.9% pure tin with lead and antimony
- Electroplating Thickness: 4 microns
- Tooling Compatibility: Interchangeable with Cable Accessories, Utilux, and Burndy tooling
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ IACS high conductivity oxygen-free copper
- Capable of withstanding continuous operating temperatures up to 155°C
- Crimped with standard Australian tooling compatible with CABAC and MSS Power dies
- Electroplated with 99.9% pure tin for corrosion resistance
- Fully annealed for enhanced ductility and tensile strength
Professional Installation Requirements
- Should be installed and crimped using standard Australian tooling by a qualified electrician to ensure proper electrical connection and safety.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- Used for crimping and connecting copper cables in power distribution systems
- Suitable for use in electrical panels, switchboards, and cable joints
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- High conductivity copper reduces energy loss in electrical connections
- Durable and corrosion-resistant materials extend product lifespan, reducing waste
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Copper Sleeve 95mm2 Cable Link is available now for immediate purchase. Ideal for electrical power connectivity applications requiring high conductivity and durability.
