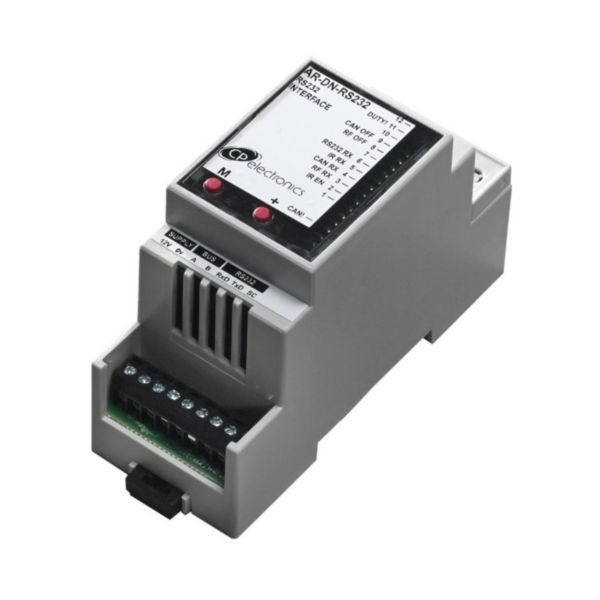

CP Electronics An-10 to RS232 DIN Rail Interface Module | Two-Way RF Transceiver | ASCII Messaging Support | DIN Rail Mount | @EA of 1 | by CP Electronics
The CP Electronics An-10 to RS232 DIN Rail Interface Module enables seamless integration of CP Electronics An-10 lighting control systems with third-party devices. Featuring a two-way RF transceiver and support for ASCII messaging, this module is perfect for commercial and industrial applications. Configurable via UNLCDHS programming handset, it ensures efficient communication and control of lighting scenes and circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CP Electronics An-10 to RS232 DIN Rail Interface Module | Two-Way RF Transceiver | ASCII Messaging Support | DIN Rail Mount | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: AR-DN-RS232
Alternatively Known As: An-10 RS232 Interface Module, CP Electronics RS232 Gateway, DIN Rail RS232 Interface
Technical Specifications
- Communication: Two-way RF transceiver and CAN port
- Interface: RS232 serial communication
- Configuration: UNLCDHS programming handset and ALC commissioning software
- Frequency: 915MHz variant available for Australia & New Zealand
- Protocol: ASCII messaging for control and status
- Mounting: DIN rail
- Dimensions (H x L x W): 90mm x 60mm x 110mm
- Weight: 0.3 kg
Key Features
- Two-way gateway between third party systems and CP Electronics An-10 lighting control system
- Supports communication via RF transceiver and CAN port for wired devices
- Configurable using UNLCDHS programming handset and ALC commissioning software
- Supports ASCII messaging for control and status feedback
- 915MHz variant available for Australia & New Zealand
Professional Installation Requirements
- Installation and configuration should be performed by a qualified electrician or systems integrator familiar with CP Electronics An-10 systems and RS232 communication protocols.
Applications
- Integration of CP Electronics An-10 lighting control system with third party Audio Visual systems
- Control of lighting scenes, circuits, and levels via ASCII messages
- Communication interface for wired and wireless An-10 devices in commercial and industrial lighting control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient lighting control integration reducing energy waste
- Supports smart building automation for optimized energy usage
Warranty Information
Standard manufacturer warranty applies, typically 2 years against defects.
Available Now
The CP Electronics An-10 to RS232 DIN Rail Interface Module is available for immediate purchase, ideal for commercial and industrial lighting control integration projects.
