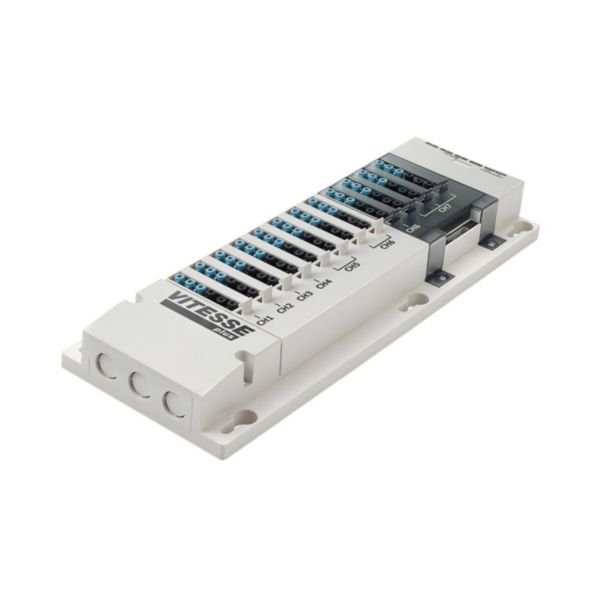

CP Electronics Pluggable LCM 7 x Switching Channels | 12 Outputs | Supports 4 Detectors | DALI/DSI Dimming | @EA of 1 | by CP Electronics
The CP Electronics Pluggable LCM 7 x Switching Channels is designed for efficient commercial lighting control, featuring 7 channels with 12 outputs and support for up to 4 detectors. Ideal for retail and educational facilities, this module enhances energy savings with graduated dimming and absence recovery features, ensuring optimal lighting management while minimizing unnecessary power usage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CP Electronics Pluggable LCM 7 x Switching Channels | 12 Outputs | Supports 4 Detectors | DALI/DSI Dimming | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: VITP7-MB
Alternatively Known As: Vitesse Plus LCM 7 Channel Lighting Controller, CP Electronics LCM 7 Channel Switch Module, Pluggable Lighting Control Module
Technical Specifications
- 7 switching channels with 12 outputs
- Supports up to 4 detectors
- Four RJ45 inputs for detectors and scene plates
- SELV switching with DALI or DSI dimming
- Corridor hold via 2 core cable linking
- Switch detection time: lights off after 10 seconds if no movement detected
- Manufactured in the UK
- Dimensions (H x L x W): 80mm x 200mm x 300mm
- Weight: 1.5 kg
Key Features
- 7 channels with 12 pluggable 6-pole outputs
- Supports up to 4 detectors for enhanced energy savings
- Graduated dimming functionality to maximize daylight use
- Absence recovery feature for energy efficiency
- Switch detection time to minimize unnecessary lighting
- Four RJ45 inputs for detectors and scene plates
- SELV switching with DALI or DSI dimming options
- Scene setting capability
- Corridor hold function without need for area controllers or networking
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal system performance.
Applications
- Commercial lighting control
- Retail lighting management
- Educational facility lighting automation
- Energy-saving lighting systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Graduated dimming reduces energy consumption by optimizing natural light use
- Absence recovery and switch detection minimize unnecessary lighting, lowering power usage
- Supports integration with energy-efficient lighting systems
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The CP Electronics Pluggable LCM 7 x Switching Channels Vitesse Plus is available for immediate purchase, ideal for commercial, retail, and educational lighting control applications.
