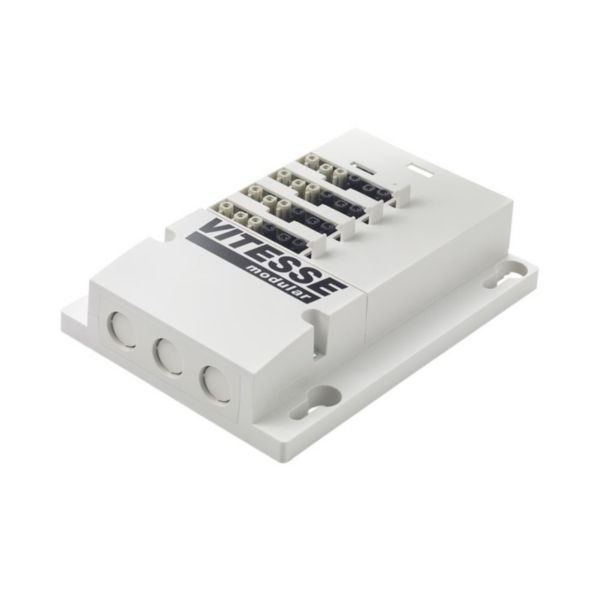

CP Electronics Starter Module Dimming | 6 Pole with 4 Outputs | Lightweight Tuffgrid Design | Expandable System | @Each of 1 | by CP Electronics
The CP Electronics Starter Module Dimming features a 6 pole design with 4 outputs, making it ideal for industrial, commercial, and retail lighting control applications. Its modular design allows for easy expansion from 4-way to 16-way, while the lightweight Tuffgrid construction ensures it fits in confined ceiling voids. This dimming module supports energy-efficient lighting control, providing a cost-effective solution for your lighting needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CP Electronics Starter Module Dimming | 6 Pole with 4 Outputs | Lightweight Tuffgrid Design | Expandable System | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: VITM6-S
Alternatively Known As: Vitesse Modular Starter Module, CP Electronics VITM6-S, Modular Lighting Control Module
Technical Specifications
- 6 pole dimming module with 4 outputs
- Modular system expandable from 4-way to 16-way
- Lightweight Tuffgrid lattice construction
- Designed for installation in confined ceiling voids
- Compatible with Vitesse Modular lighting connection system
- Supports radio-controlled lighting control with optional modules
- Dimensions (H x L x W): 50mm x 200mm x 150mm
- Weight: 0.3 kg
Key Features
- Modular design allows easy addition or removal of modules as needed
- Compact and lightweight for installation in confined ceiling voids
- Tuffgrid lattice design provides strength while maintaining light weight
- Supports dimming control with 6 poles and 4 outputs
- Expandable from 4-way to 16-way using extender modules
- Cost-effective solution for power and control in lighting installations
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with modular lighting control systems to ensure compliance with electrical standards and safety.
Applications
- Industrial lighting installations
- Commercial building lighting control
- Retail lighting distribution systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Modular design reduces waste by allowing system expansion without full replacement
- Supports energy-efficient dimming control to reduce power consumption
Warranty Information
Standard manufacturer warranty applies, typically 2 years against defects.
Available Now
The CP Electronics Starter Module Dimming 6 Pole 4 Outputs Black/Grey Coding is available for immediate purchase, ideal for industrial, commercial, and retail lighting control applications.
