Trade Discount 25%

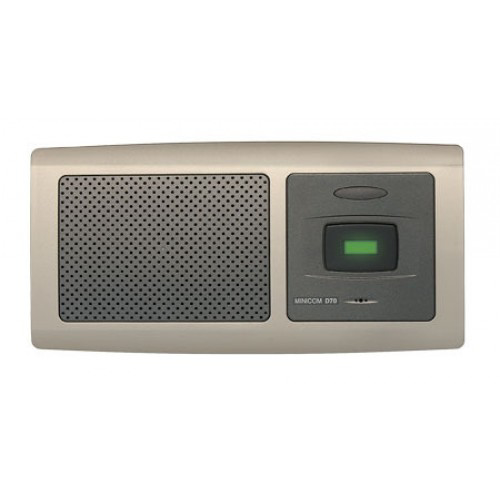

D70 Minicom Door Station Bronze iCentral
iCentral D70 Minicom door station features a bronze finish in the 70 Series range. Ideal for Minicom intercom systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Minicom D70 Door Station, iCentral 70 Series Door Station, Bronze Intercom Door Station
Technical Specifications
- Series: Minicom 70 Series
- Finish: Bronze
- Power Requirement: 12 to 13.8 VDC at 500 mA
- Audio: Electret microphone and 65 mm Mylar cone speaker
- System Capacity: Up to four room and door stations in total
- Chime Selection: 10 programmable door chimes
- Lock Output: 12 VDC at 50 mA via relay connection
- Compatibility: iCentral Minicom room stations and previous Minicom series
- Fascia Dimensions: 265 mm wide x 130 mm high
- Recess Dimensions: 205 mm wide x 95 mm high x 30 mm deep
- Manufacturing: Designed and made in Australia
- Dimensions (H x L x W): 130mm x 265mm x 30mm
- Weight: 0.75 kg
Key Features
- Bronze-finish door station for iCentral Minicom intercom systems
- Bell press button for calling connected room stations
- Two-way communication with compatible Minicom room stations
- Supports optional electric door strike or automatic gate release
- Ten selectable electronic chime tones
- Suitable for configurations of up to four stations
- Backward compatible with previous Minicom series
- Weatherproof cover required when installed in exposed outdoor locations
Professional Installation Requirements
- Installation should be performed by a suitably qualified intercom or security installer. Use appropriate cabling, provide weather protection for exposed installations, and connect any electric strike or gate relay in accordance with the manufacturer's installation manual and applicable electrical installation requirements.
Applications
- Residential front door intercom systems
- Small office and commercial entry communication
- Gate and pedestrian access communication
- Minicom room-to-door communication systems
- Installations requiring optional electric lock or automatic gate release
Environmental Benefits
- Low-voltage DC operation at the door station reduces exposure to mains voltage at the external entry point
- Durable fixed installation can reduce replacement frequency compared with temporary or battery-powered entry devices
- Repair or replacement of the door station as an individual system component can reduce whole-system waste
Warranty Information
No specific iCentral warranty period was identified in the available manufacturer and distributor documentation. Confirm applicable warranty terms with the authorised Australian distributor before purchase.
Available Now
Available through iCentral, Valet/Ness channels and authorised Australian intercom and security distributors.
