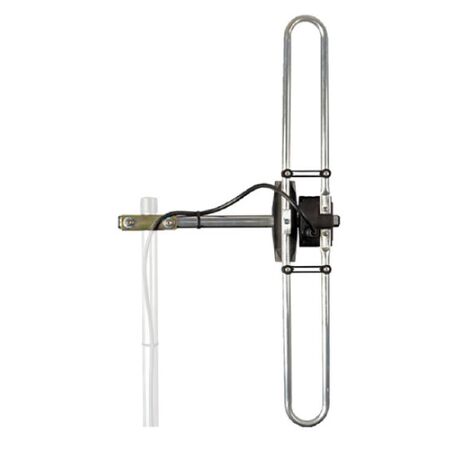

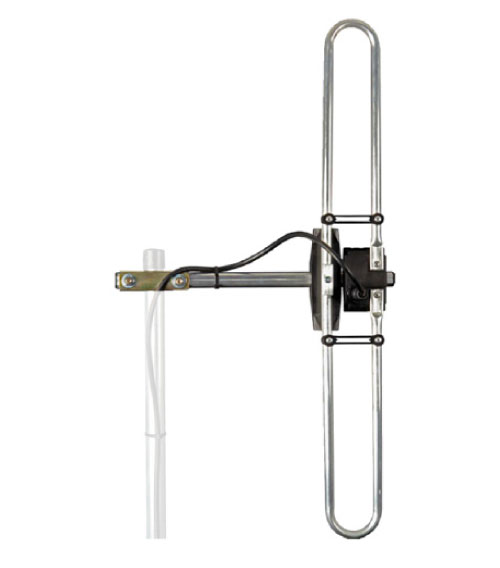

DAB+ Antenna to Suit System One iCentral
iCentral DAB+ antenna is an intercom accessory to Suit System One. Ideal for System One intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: System One DAB Antenna, DAB+ Folded Dipole Antenna, Valet 106-909 DAB Antenna
Technical Specifications
- Antenna Category: DAB+
- Frequency Band: Band III DAB+
- Antenna Type: Folded dipole
- Maximum Gain: 0 dBd
- Antenna Elements: 1
- Material: Aluminium with UV-stabilised plastics
- Connection: F connector
- Recommended Cable: RG6 coaxial cable; RG59 acceptable for existing installations
- Included Hardware: Rubber boot for F connector, V block and U-bolt
- Boom Length: 360 mm
- Mast: Not included
- Dimensions (H x L x W): 100mm x 670mm x 370mm
- Weight: 0.7 kg
Key Features
- Designed for iCentral System One master stations with DAB+ digital radio
- Folded dipole design maximises DAB+ signal reception
- Helps reduce interference from other frequencies
- Suitable for roof-space or external mounting
- 360 mm boom helps reduce reflections when mounted to a mast
- Vertical mounting is recommended for best DAB+ reception
- Compatible with RG6 coaxial cable for best results
Applications
- DAB+ radio reception for iCentral System One intercom installations
- Residential intercom systems with System One DAB+ master stations
- Roof-space or external DAB+ antenna installations
Environmental Benefits
- Aluminium antenna components are recyclable at end of service life
- UV-stabilised plastic components support longer outdoor service life
- Passive antenna design operates without a dedicated power supply
- Durable construction can reduce replacement frequency and material waste
Warranty Information
Covered under iCentral's three-year warranty for intercom products, subject to the manufacturer's warranty terms.
Available Now
Available through Valet, iCentral and authorised Australian distributors.
